Standard Nuts HNL-U

Self Clinching Fasteners • Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Standard Nuts HNL

• Self-clinching • Available in heat-treated and non-heat-treated steel • Available in non-locking and self-locking
• Installed quickly and easily • More cost effective than weld nuts

American Standard Sizes: • Series HNL-U

Metric Sizes: • Series HNL-U

Series HNL-U

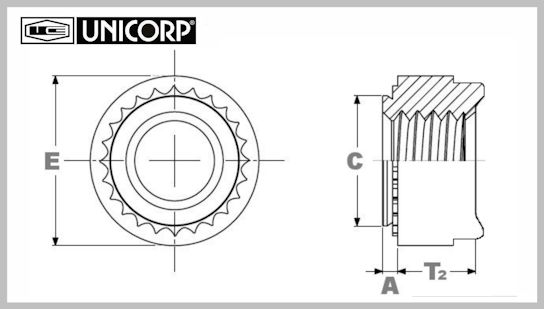

Series HNL-U / American Standard Sizes

• Shape- Round • Sheet Hardness- HRB 60 / HB 107 or Less • Material- Carbon Steel • Type- Self-Locking HNL • Min. Sheet Thickness- 0.058" • *Zinc Clear Plated per ASTM B633
	Series HNL-U American Standard Sizes (SAE)

Part
Number

Thread

"A"
(Shank)
Max.

"T1"
Head
Height

"E"
Head
Diameter

"C" Max.
Body
Diameter

Hole
Size in
Sheet

Min.
Distance
to Edge

Finish

Mil-Spec

HNL-0420-LZ-U

1/4-20

0.058"

0.189"

0.500"

0.343"

0.344"

0.380"

*Zinc Clear

M45938/10-1L

HNL-0518-LZ-U

5/16-18

0.058"

0.240"

0.575"

0.412"

0.413"

0.420"

*Zinc Clear

M45938/10-2L

HNL-0616-LZ-U

3/8-16

0.058"

0.300"

0.650"

0.499"

0.500"

0.480"

*Zinc Clear

M45938/10-3L

Series HNL-U / Metric Sizes

• Shape- Round • Sheet Hardness- HRB 60 / HB 107 or Less • Material- Carbon Steel • Type- Self-Locking HNL • Min. Sheet Thickness- 1.48mm • *Zinc Clear Plated per ASTM B633
	Series HNL-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"T1"
Head
Height

"E"
Head
Diameter

"C" Max.
Body
Diameter

Hole
Size in
Sheet

Min.
Distance
to Edge

Finish

Mil-Spec

HNL-M6-LZ-U

M6 x 1.0

1.48
mm

5.00
mm

12.70
mm

8.72
mm

8.75
mm

10.00
mm

*Zinc Clear

N/A

HNL-M8-LZ-U

M8 x 1.25

1.48
mm

6.30
mm

14.60
mm

10.47
mm

10.50
mm

11.00
mm

*Zinc Clear

N/A

HNL-M10-LZ-U

M10 x 1.5

1.48
mm

7.90
mm

16.50
mm

12.67
mm

12.70
mm

12.00
mm

*Zinc Clear

N/A
