Low Displacement Head Studs FHLS-U Self Clinching Fasteners Studs for Sheet Metal American Standard (Inches) & Metric Sizes |
||||||||||||
|
||||||||||||
|
Self-clinching
Installed quickly and easily by squeezing into place
Creates flush-head assembly Stud locked into place Allows for installation closer to edge of sheet without causing distortion Minimum sheet thickness of 0.040" /1.00 mm |
||||||||||||
| American Standard Sizes: Series FHLS-U | ||||||||||||
| Metric Sizes: Series FHLS-U | ||||||||||||
| Series FHLS-U | ||||||||||||

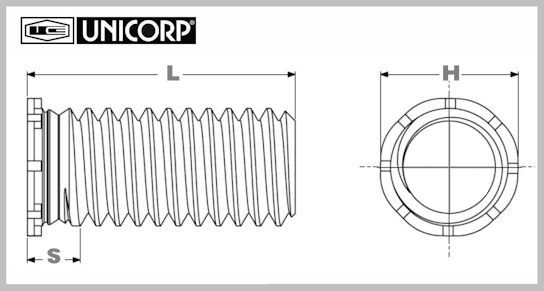

| Series FHLS-U / American Standard Sizes | ||||||||||||
|
||||||||||||
|
Part Number |
Thread |
"S" Max. |
"H" Head Diameter |
"L" Overall Length |
Min. Sheet Thickness |
Hole Size in Sheet |
Max. Hole in Attached Parts |
Min. Distance to Edge |
Mil-Spec | |||
| FHLS-256-4-U | 2-56 | 0.080" | 0.112" | 0.250" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-256-5-U | 2-56 | 0.080" | 0.112" | 0.312" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-256-6-U | 2-56 | 0.080" | 0.112" | 0.375" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-256-8-U | 2-56 | 0.080" | 0.112" | 0.500" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-256-10-U | 2-56 | 0.080" | 0.112" | 0.625" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-256-12-U | 2-56 | 0.080" | 0.112" | 0.750" | 0.040" | 0.085" | 0.100" | 0.098" | N/A | |||
| FHLS-440-4-U | 4-40 | 0.085" | 0.138" | 0.250" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-5-U | 4-40 | 0.085" | 0.138" | 0.312" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-6-U | 4-40 | 0.085" | 0.138" | 0.375" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-8-U | 4-40 | 0.085" | 0.138" | 0.500" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-10-U | 4-40 | 0.085" | 0.138" | 0.625" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-12-U | 4-40 | 0.085" | 0.138" | 0.750" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-14-U | 4-40 | 0.085" | 0.138" | 0.875" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-440-16-U | 4-40 | 0.085" | 0.138" | 1.000" | 0.040" | 0.111" | 0.125" | 0.124" | N/A | |||
| FHLS-632-4-U | 6-32 | 0.090" | 0.164" | 0.250" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-5-U | 6-32 | 0.090" | 0.164" | 0.312" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-6-U | 6-32 | 0.090" | 0.164" | 0.375" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-8-U | 6-32 | 0.090" | 0.164" | 0.500" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-10-U | 6-32 | 0.090" | 0.164" | 0.625" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-12-U | 6-32 | 0.090" | 0.164" | 0.750" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-14-U | 6-32 | 0.090" | 0.164" | 0.875" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-16-U | 6-32 | 0.090" | 0.164" | 1.000" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-20-U | 6-32 | 0.090" | 0.164" | 1.250" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-632-24-U | 6-32 | 0.090" | 0.164" | 1.500" | 0.040" | 0.137" | 0.150" | 0.150" | N/A | |||
| FHLS-832-4-U | 8-32 | 0.090" | 0.190" | 0.250" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-5-U | 8-32 | 0.090" | 0.190" | 0.312" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-6-U | 8-32 | 0.090" | 0.190" | 0.375" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-8-U | 8-32 | 0.090" | 0.190" | 0.500" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-10-U | 8-32 | 0.090" | 0.190" | 0.625" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-12-U | 8-32 | 0.090" | 0.190" | 0.750" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-14-U | 8-32 | 0.090" | 0.190" | 0.875" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-16-U | 8-32 | 0.090" | 0.190" | 1.000" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-20-U | 8-32 | 0.090" | 0.190" | 1.250" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-832-24-U | 8-32 | 0.090" | 0.190" | 1.500" | 0.040" | 0.163" | 0.180" | 0.176" | N/A | |||
| FHLS-032-5-U | 10-32 | 0.100" | 0.225" | 0.312" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-6-U | 10-32 | 0.100" | 0.225" | 0.375" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-8-U | 10-32 | 0.100" | 0.225" | 0.500" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-10-U | 10-32 | 0.100" | 0.225" | 0.625" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-12-U | 10-32 | 0.100" | 0.225" | 0.750" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-14-U | 10-32 | 0.100" | 0.225" | 0.875" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-16-U | 10-32 | 0.100" | 0.225" | 1.000" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-20-U | 10-32 | 0.100" | 0.225" | 1.250" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
| FHLS-032-24-U | 10-32 | 0.100" | 0.225" | 1.500" | 0.040" | 0.189" | 0.205" | 0.210" | N/A | |||
 |
||||||||||||
| Series FHLS-U / Metric Sizes | ||||||||||||
|
||||||||||||
|
Part Number |
Thread |
"S" Max. |
"H" Head Diameter |
"L" Overall Length |
Min. Sheet Thickness |
Hole Size in Sheet |
Max. Hole in Attached Parts |
Min. Distance to Edge |
Mil-Spec | |||
| FHLS-M2.5-6-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
6.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M2.5-8-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
8.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M2.5-10-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
10.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M2.5-12-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
12.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M2.5-15-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
15.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M2.5-18-U | M2.5 x 0.45 |
2.10 mm |
3.15 mm |
18.00 mm |
1.00 mm |
2.50 mm |
2.90 mm |
2.80 mm |
N/A | |||
| FHLS-M3-6-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
6.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-8-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
8.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-10-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
10.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-12-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
12.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-15-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
15.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-18-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
18.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-20-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
20.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3-25-U | M3 x 0.5 |
2.10 mm |
3.65 mm |
25.00 mm |
1.00 mm |
3.00 mm |
3.40 mm |
3.30 mm |
N/A | |||
| FHLS-M3.5-6-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
6.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-8-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
8.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-10-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
10.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-12-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
12.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-15-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
15.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-18-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
18.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-20-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
20.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-25-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
25.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M3.5-30-U | M3.5 x 0.6 |
2.30 mm |
4.15 mm |
30.00 mm |
1.00 mm |
3.50 mm |
3.90 mm |
3.80 mm |
N/A | |||
| FHLS-M4-6-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
6.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-8-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
8.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-10-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
10.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-12-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
12.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-15-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
15.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-18-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
18.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-20-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
20.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-25-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
25.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-30-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
30.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M4-35-U | M4 x 0.7 |
2.40 mm |
4.65 mm |
35.00 mm |
1.00 mm |
4.00 mm |
4.40 mm |
4.30 mm |
N/A | |||
| FHLS-M5-8-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
8.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-10-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
10.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-12-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
12.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-15-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
15.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-18-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
18.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-20-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
20.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-25-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
25.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-30-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
30.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
| FHLS-M5-35-U | M5 x 0.8 |
2.70 mm |
5.90 mm |
35.00 mm |
1.00 mm |
5.00 mm |
5.40 mm |
5.60 mm |
N/A | |||
 |
 |
|||||||||||
|
