Miniature Nuts FEX-U

Self Clinching Fasteners • Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Miniature Nuts U, UL, FE, FEO, FEOX, FEX

• Self-clinching    • FE-U, FEO-U, and UL-U are self-locking
• FEX-U, FEOX-U and U-U have 2B / 6H threads and are non-locking    • Strong threads without using too much space
• Knurled collar prevents rotation    • Installed quickly and easily

American Standard Sizes: • Series FEX-U

Metric Sizes: • Series FEX-U

Series FEX-U

Series FEX-U / American Standard Sizes

• Shape- Round • Thread Type- Non-Locking • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series FEX-U American Standard Sizes (SAE)

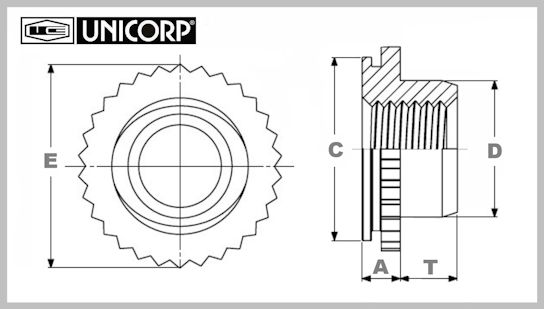

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Diameter

"C"
Body
Diameter

"D"
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Max.
Hole in
Attached
Parts

Mil-Spec

FEX-440-U

4-40

0.060"

0.065"

0.192"

0.171"

0.145"

0.059" - 0.070"

0.172"

0.140"

0.132"

M45938/7-2P

FEX-632-U

6-32

0.060"

0.075"

0.244"

0.212"

0.180"

0.059" - 0.070"

0.213"

0.170"

0.158"

M45938/7-4P

FEX-832-U

8-32

0.060"

0.090"

0.322"

0.289"

0.215"

0.059" - 0.070"

0.290"

0.200"

0.184"

M45938/7-6P

FEX-032-U

10-32

0.060"

0.110"

0.322"

0.289"

0.245"

0.059" - 0.070"

0.290"

0.200"

0.210"

M45938/7-8P

FEX-0420-U

1/4-20

0.060"

0.120"

0.384"

0.343"

0.318"

0.059" - 0.070"

0.344"

0.280"

0.270"

M45938/7-10P

FEX-0428-U

1/4-28

0.060"

0.120"

0.384"

0.343"

0.318"

0.059" - 0.070"

0.344"

0.280"

0.270"

M45938/7-9P

Series FEX-U / Metric Sizes

• Shape- Round • Thread Type- Non-Locking • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series FEX-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Diameter

"C"
Body
Diameter

"D"
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Max.
Hole in
Attached
Parts

Mil-Spec

FEX-M3-U

M3 x 0.5

1.53
mm

1.90
mm

4.88
mm

4.37
mm

3.96
mm

1.50 - 1.78
mm

4.39
mm

3.60
mm

3.50
mm

N/A

FEX-M4-U

M4 x 0.7

1.53
mm

2.55
mm

8.17
mm

7.37
mm

5.23
mm

1.50 - 1.78
mm

7.39
mm

5.20
mm

4.50
mm

N/A

FEX-M5-U

M5 x 0.8

1.53
mm

3.05
mm

8.17
mm

7.37
mm

6.48
mm

1.50 - 1.78
mm

7.39
mm

5.20
mm

5.50
mm

N/A

FEX-M6-U

M6 x 1.0

1.53
mm

3.30
mm

9.74
mm

8.72
mm

7.72
mm

1.50 - 1.78
mm

8.74
mm

7.10
mm

6.50
mm

N/A
