Floating Receptacle Nuts F10-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Floating Receptacle Nuts F10-U

• Remain captive to panel and frame when unassembled

Series F10-U
Series F10-U / American Standard Sizes
• Sheet Hardness- HRB 70 / HB 125 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633 • Mil-Spec- N/A

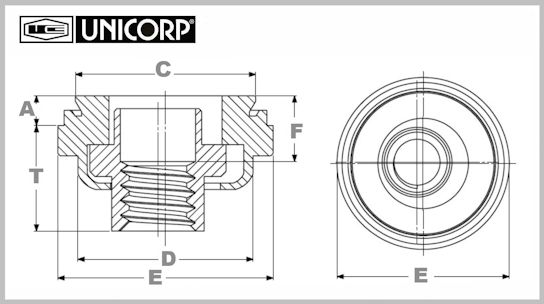

	Series F10-U American Standard Sizes (SAE)

Part
Number

Thread

"A"
(Shank)
Max.

"C"
Max.

"D"
Max.

"E"
Max.

"F"

"T"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

F10-440-1-ZI-U

4-40

0.038"

0.289"

0.290"

0.360"

0.102"

0.200"

0.040"

0.290"

0.300"

F10-632-1-ZI-U

6-32

0.038"

0.327"

0.330"

0.390"

0.102"

0.193"

0.040"

0.328"

0.320"

F10-832-1-ZI-U

8-32

0.038"

0.367"

0.365"

0.440"

0.102"

0.191"

0.040"

0.368"

0.340"

F10-032-1-ZI-U

10-32

0.038"

0.405"

0.470"

0.102"

0.250"

0.040"

0.406"

0.360"

Series F10-U / Metric Sizes
• Sheet Hardness- HRB 70 / HB 125 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633 • Mil-Spec- N/A
	Series F10-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"C"
Max.

"D"
Max.

"E"
Max.

"F"

"T"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

F10-M3-1-ZI-U

M3 x 0.5

0.97
mm

7.34
mm

7.37
mm

9.15
mm

2.59
mm

5.08
mm

1.00
mm

7.37
mm

7.62
mm

F10-M4-1-ZI-U

M4 x 0.7

0.97
mm

9.32
mm

9.28
mm

11.18
mm

2.59
mm

4.85
mm

1.00
mm

9.35
mm

8.64
mm

F10-M5-1-ZI-U

M5 x 0.8

0.97
mm

10.29
mm

11.94
mm

2.59
mm

6.53
mm

1.00
mm

10.31
mm

9.14
mm
