Blind Threaded Standoffs BSOS-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Blind Threaded BSO, BSOS, BSOA, BSO4

• Self-clinching • Installed quickly and easily in metal panels that are 0.040" /1.00 mm thick
• Installed using pneumatic, hydraulic, or mechanical press • No secondary operation needed prior to installation
• With blind standoff, outer sheet surface is both flushed and closed

American Standard Sizes: • Series BSOS-U

Metric Sizes: • Series BSOS-U

Series BSOS-U

Series BSOS-U / American Standard Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380

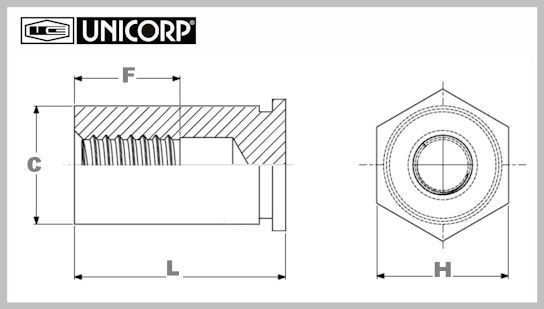

	Series BSOS-U American Standard Sizes (SAE)

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

"F"
Full Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

BSOS-440-4-U

4-40

3/16"

0.125"

0.156"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B4

BSOS-440-6-U

4-40

3/16"

0.187"

0.156"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B6

BSOS-440-8-U

4-40

3/16"

0.250"

0.156"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B8

BSOS-440-10-U

4-40

3/16"

0.312"

0.156"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B10

BSOS-440-12-U

4-40

3/16"

0.375"

0.156"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B12

BSOS-440-14-U

4-40

3/16"

0.437"

0.187"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B14

BSOS-440-16-U

4-40

3/16"

0.500"

0.250"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B16

BSOS-440-18-U

4-40

3/16"

0.562"

0.250"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B18

BSOS-440-20-U

4-40

3/16"

0.625"

0.250"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B20

BSOS-440-22-U

4-40

3/16"

0.687"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B22

BSOS-440-24-U

4-40

3/16"

0.750"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B24

BSOS-440-26-U

4-40

3/16"

0.812"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B26

BSOS-440-28-U

4-40

3/16"

0.875"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B28

BSOS-440-30-U

4-40

3/16"

0.937"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B30

BSOS-440-32-U

4-40

3/16"

1.000"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B32

BSOS-440-34-U

4-40

3/16"

1.062"

0.375"

0.040"

0.166"

0.165"

0.230"

NAS1129C04B34

BSOS-6440-4-U

4-40

1/4"

0.125"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B4

BSOS-6440-6-U

4-40

1/4"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B6

BSOS-6440-8-U

4-40

1/4"

0.250"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B8

BSOS-6440-10-U

4-40

1/4"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B10

BSOS-6440-12-U

4-40

1/4"

0.375"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B12

BSOS-6440-14-U

4-40

1/4"

0.437"

0.187"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B14

BSOS-6440-16-U

4-40

1/4"

0.500"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B16

BSOS-6440-18-U

4-40

1/4"

0.562"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B18

BSOS-6440-20-U

4-40

1/4"

0.625"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B20

BSOS-6440-22-U

4-40

1/4"

0.687"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B22

BSOS-6440-24-U

4-40

1/4"

0.750"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B24

BSOS-6440-26-U

4-40

1/4"

0.812"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B26

BSOS-6440-28-U

4-40

1/4"

0.875"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B28

BSOS-6440-30-U

4-40

1/4"

0.937"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B30

BSOS-6440-32-U

4-40

1/4"

1.000"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B32

BSOS-6440-34-U

4-40

1/4"

1.062"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C64B34

BSOS-632-4-U

6-32

1/4"

0.125"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B4

BSOS-632-6-U

6-32

1/4"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B6

BSOS-632-8-U

6-32

1/4"

0.250"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B8

BSOS-632-10-U

6-32

1/4"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B10

BSOS-632-12-U

6-32

1/4"

0.375"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B12

BSOS-632-14-U

6-32

1/4"

0.437"

0.187"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B14

BSOS-632-16-U

6-32

1/4"

0.500"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B16

BSOS-632-18-U

6-32

1/4"

0.562"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B18

BSOS-632-20-U

6-32

1/4"

0.625"

0.250"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B20

BSOS-632-22-U

6-32

1/4"

0.687"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B22

BSOS-632-24-U

6-32

1/4"

0.750"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B24

BSOS-632-26-U

6-32

1/4"

0.812"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B26

BSOS-632-28-U

6-32

1/4"

0.875"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B28

BSOS-632-30-U

6-32

1/4"

0.937"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B30

BSOS-632-32-U

6-32

1/4"

1.000"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B32

BSOS-632-34-U

6-32

1/4"

1.062"

0.375"

0.040"

0.213"

0.212"

0.270"

NAS1129C06B34

BSOS-8632-4-U

6-32

5/16"

0.125"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B4

BSOS-8632-6-U

6-32

5/16"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B6

BSOS-8632-8-U

6-32

5/16"

0.250"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B8

BSOS-8632-10-U

6-32

5/16"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B10

BSOS-8632-12-U

6-32

5/16"

0.375"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B12

BSOS-8632-14-U

6-32

5/16"

0.437"

0.187"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B14

BSOS-8632-16-U

6-32

5/16"

0.500"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B16

BSOS-8632-18-U

6-32

5/16"

0.562"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B18

BSOS-8632-20-U

6-32

5/16"

0.625"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B20

BSOS-8632-22-U

6-32

5/16"

0.687"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B22

BSOS-8632-24-U

6-32

5/16"

0.750"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B24

BSOS-8632-26-U

6-32

5/16"

0.812"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B26

BSOS-8632-28-U

6-32

5/16"

0.875"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B28

BSOS-8632-30-U

6-32

5/16"

0.937"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B30

BSOS-8632-32-U

6-32

5/16"

1.000"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B32

BSOS-8632-34-U

6-32

5/16"

1.062"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C86B34

BSOS-832-4-U

8-32

5/16"

0.125"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B4

BSOS-832-6-U

8-32

5/16"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B6

BSOS-832-8-U

8-32

5/16"

0.250"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B8

BSOS-832-10-U

8-32

5/16"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B10

BSOS-832-12-U

8-32

5/16"

0.375"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B12

BSOS-832-14-U

8-32

5/16"

0.437"

0.187"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B14

BSOS-832-16-U

8-32

5/16"

0.500"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B16

BSOS-832-18-U

8-32

5/16"

0.562"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B18

BSOS-832-20-U

8-32

5/16"

0.625"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B20

BSOS-832-22-U

8-32

5/16"

0.687"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B22

BSOS-832-24-U

8-32

5/16"

0.750"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B24

BSOS-832-26-U

8-32

5/16"

0.812"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B26

BSOS-832-28-U

8-32

5/16"

0.875"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B28

BSOS-832-30-U

8-32

5/16"

0.937"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B30

BSOS-832-32-U

8-32

5/16"

1.000"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B32

BSOS-832-34-U

8-32

5/16"

1.062"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C08B34

BSOS-1032-4-U

10-32

5/16"

0.125"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B4

BSOS-1032-6-U

10-32

5/16"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B6

BSOS-1032-8-U

10-32

5/16"

0.250"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B8

BSOS-1032-10-U

10-32

5/16"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B10

BSOS-1032-12-U

10-32

5/16"

0.375"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B12

BSOS-1032-14-U

10-32

5/16"

0.437"

0.187"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B14

BSOS-1032-16-U

10-32

5/16"

0.500"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B16

BSOS-1032-18-U

10-32

5/16"

0.562"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B18

BSOS-1032-20-U

10-32

5/16"

0.625"

0.250"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B20

BSOS-1032-22-U

10-32

5/16"

0.687"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B22

BSOS-1032-24-U

10-32

5/16"

0.750"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B24

BSOS-1032-26-U

10-32

5/16"

0.812"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B26

BSOS-1032-28-U

10-32

5/16"

0.875"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B28

BSOS-1032-30-U

10-32

5/16"

0.937"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B30

BSOS-1032-32-U

10-32

5/16"

1.000"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B32

BSOS-1032-34-U

10-32

5/16"

1.062"

0.375"

0.050"

0.281"

0.280"

0.310"

NAS1129C3B34

Series BSOS-U / Metric Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series BSOS-U Metric Sizes

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

"F"
Full Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

BSOS-M3-6-U

M3 x 0.5

4.80
mm

6.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-8-U

M3 x 0.5

4.80
mm

8.00
mm

4.00
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-10-U

M3 x 0.5

4.80
mm

10.00
mm

4.00
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-12-U

M3 x 0.5

4.80
mm

12.00
mm

5.00
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-14-U

M3 x 0.5

4.80
mm

14.00
mm

6.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-16-U

M3 x 0.5

4.80
mm

16.00
mm

6.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-18-U

M3 x 0.5

4.80
mm

18.00
mm

9.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-20-U

M3 x 0.5

4.80
mm

20.00
mm

9.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-22-U

M3 x 0.5

4.80
mm

22.00
mm

9.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-M3-25-U

M3 x 0.5

4.80
mm

25.00
mm

9.50
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

BSOS-3.5M3-6-U

M3 x 0.5

6.40
mm

6.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-8-U

M3 x 0.5

6.40
mm

8.00
mm

4.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-10-U

M3 x 0.5

6.40
mm

10.00
mm

4.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-12-U

M3 x 0.5

6.40
mm

12.00
mm

5.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-14-U

M3 x 0.5

6.40
mm

14.00
mm

6.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-16-U

M3 x 0.5

6.40
mm

16.00
mm

6.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-18-U

M3 x 0.5

6.40
mm

18.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-20-U

M3 x 0.5

6.40
mm

20.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-22-U

M3 x 0.5

6.40
mm

22.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-3.5M3-25-U

M3 x 0.5

6.40
mm

25.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-6-U

M3.5 x 0.6

6.40
mm

6.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-8-U

M3.5 x 0.6

6.40
mm

8.00
mm

4.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-10-U

M3.5 x 0.6

6.40
mm

10.00
mm

4.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-12-U

M3.5 x 0.6

6.40
mm

12.00
mm

5.00
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-14-U

M3.5 x 0.6

6.40
mm

14.00
mm

6.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-16-U

M3.5 x 0.6

6.40
mm

16.00
mm

6.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-18-U

M3.5 x 0.6

6.40
mm

18.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-20-U

M3.5 x 0.6

6.40
mm

20.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-22-U

M3.5 x 0.6

6.40
mm

22.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M3.5-25-U

M3.5 x 0.6

6.40
mm

25.00
mm

9.50
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

BSOS-M4-6-U

M4 x 0.7

7.90
mm

6.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-8-U

M4 x 0.7

7.90
mm

8.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-10-U

M4 x 0.7

7.90
mm

10.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-12-U

M4 x 0.7

7.90
mm

12.00
mm

5.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-14-U

M4 x 0.7

7.90
mm

14.00
mm

6.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-16-U

M4 x 0.7

7.90
mm

16.00
mm

6.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-18-U

M4 x 0.7

7.90
mm

18.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-20-U

M4 x 0.7

7.90
mm

20.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-22-U

M4 x 0.7

7.90
mm

22.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M4-25-U

M4 x 0.7

7.90
mm

25.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-6-U

M5 x 0.8

7.90
mm

6.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-8-U

M5 x 0.8

7.90
mm

8.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-10-U

M5 x 0.8

7.90
mm

10.00
mm

4.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-12-U

M5 x 0.8

7.90
mm

12.00
mm

5.00
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-14-U

M5 x 0.8

7.90
mm

14.00
mm

6.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-16-U

M5 x 0.8

7.90
mm

16.00
mm

6.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-18-U

M5 x 0.8

7.90
mm

18.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-20-U

M5 x 0.8

7.90
mm

20.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-22-U

M5 x 0.8

7.90
mm

22.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

BSOS-M5-25-U

M5 x 0.8

7.90
mm

25.00
mm

9.50
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

UNICORP Electronic Hardware - Self Clinching Fasteners

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
