Floating Clinch Nuts AS-U, AC-U, A4-U

Self Clinching Fasteners • Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Floating Nuts AS, AC, A4

• Self-clinching • Load bearing threads • Non-locking threads
• Installed quickly and easily by squeezing into prepared holes • Sheet is flush • Fastener is permanently installed
• Offsets mating hole misalignments to 0.030"/ 0.8 mm

American Standard Sizes: • Series AS-U • Series AC-U • Series A4-U

Metric Sizes: • Series AS-U • Series AC-U • Series A4-U

Series AS-U

Series AS-U / American Standard Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.015" min. in all directions from center, 0.030" total
      • Sheet Hardness-  HRB 70 / HB 125 or Less
      • Fastener Material-  Steel
      • Fastener Materials- Retainer-  Heat-Treated Carbon Steel
      • Fastener Materials- Nut-  Carbon Steel
      • Finish- Retainer& Nut-  Zinc Clear Plated per ASTM B633

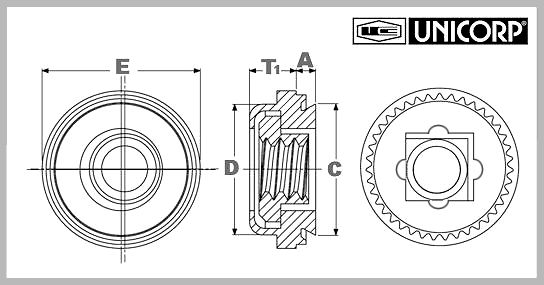

Series AS_U
American Standard Sizes
(SAE)

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

AS-440-1ZI

4-40

0.038"

0.290"

0.289"

0.290"

0.360"

0.130"

0.300"

M45938/11-1Z

AS-632-1ZI

6-32

0.038"

0.328"

0.327"

0.335"

0.390"

0.130"

0.320"

M45938/11-3Z

AS-832-1ZI

8-32

0.038"

0.368"

0.367"

0.365"

0.440"

0.130"

0.340"

M45938/11-5Z

AS-024-1ZI

10-24

0.038"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-7Z

AS-032-1ZI

10-32

0.038"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-9Z

AS-440-2ZI

4-40

0.054"

0.290"

0.289"

0.290"

0.360"

0.130"

0.300"

M45938/11-2Z

AS-632-2ZI

6-32

0.054"

0.328"

0.327"

0.335"

0.390"

0.130"

0.320"

M45938/11-4Z

AS-832-2ZI

8-32

0.054"

0.368"

0.367"

0.365"

0.440"

0.130"

0.340"

M45938/11-6Z

AS-024-2ZI

10-24

0.054"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-8Z

AS-032-2ZI

10-32

0.054"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-10Z

AS-0420-2ZI

1/4-20

0.054"

0.515"

0.514"

0.510"

0.600"

0.210"

0.420"

M45938/11-11Z

AS-0428-2ZI

1/4-28

0.054"

0.515"

0.514"

0.510"

0.600"

0.210"

0.420"

M45938/11-12Z

Series AS-U / Metric Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.38 mm min. in all directions from center, 0.76 mm total
      • Sheet Hardness-  HRB 70 / HB 125 or Less
      • Fastener Material-  Steel
      • Fastener Materials- Retainer-  Heat-Treated Carbon Steel
      • Fastener Materials- Nut-  Carbon Steel
      • Finish- Retainer & Nut-  Zinc Clear Plated per ASTM B633

Series AS-U
Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

AS-M3-1ZI

M3 x 0.5

0.97
mm

7.37
mm

7.35
mm

7.37
mm

9.14
mm

3.31
mm

7.62
mm

N/A

AS-M4-1ZI

M4 x 0.7

0.97
mm

9.35
mm

9.33
mm

9.28
mm

11.18
mm

3.31
mm

8.64
mm

N/A

AS-M5-1ZI

M5 x 0.8

0.97
mm

10.31
mm

10.29
mm

11.94
mm

4.32
mm

9.14
mm

N/A

AS-M3-2ZI

M3 x 0.5

1.38
mm

7.37
mm

7.35
mm

7.37
mm

9.14
mm

3.31
mm

7.62
mm

N/A

AS-M4-2ZI

M4 x 0.7

1.38
mm

9.35
mm

9.33
mm

9.28
mm

11.18
mm

3.31
mm

8.64
mm

N/A

AS-M5-2ZI

M5 x 0.8

1.38
mm

10.31
mm

10.29
mm

11.94
mm

4.32
mm

9.14
mm

N/A

AS-M6-2ZI

M6 x 1.0

1.38
mm

13.08
mm

13.06
mm

12.96
mm

15.24
mm

5.34
mm

10.67
mm

N/A

Series AC-U

Series AC-U / American Standard Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.015" min. in all directions from center, 0.030" total
      • Sheet Hardness-  HRB 70 / HB 125 or Less
      • Fastener Material-  300 Series Stainless Steel
      • Fastener Materials- Retainer-  300 Series Stainless Steel
      • Fastener Materials- Nut-  300 Series Stainless Steel
      • Finish- Retainer & Nut-  Passivated per ASTM A380

Series AC-U
American Standard Sizes
(SAE)

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

AC-440-1

4-40

0.038"

0.290"

0.289"

0.290"

0.360"

0.130"

0.300"

M45938/11-1C

AC-632-1

6-32

0.038"

0.328"

0.327"

0.335"

0.390"

0.130"

0.320"

M45938/11-3C

AC-832-1

8-32

0.038"

0.368"

0.367"

0.365"

0.440"

0.130"

0.340"

M45938/11-5C

AC-024-1

10-24

0.038"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-7C

AC-032-1

10-32

0.038"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-9C

AC-440-2

4-40

0.054"

0.290"

0.289"

0.290"

0.360"

0.130"

0.300"

M45938/11-2C

AC-632-2

6-32

0.054"

0.328"

0.327"

0.335"

0.390"

0.130"

0.320"

M45938/11-4C

AC-832-2

8-32

0.054"

0.368"

0.367"

0.365"

0.440"

0.130"

0.340"

M45938/11-6C

AC-024-2

10-24

0.054"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-8C

AC-032-2

10-32

0.054"

0.406"

0.405"

0.470"

0.170"

0.360"

M45938/11-10C

AC-0420-2

1/4-20

0.054"

0.515"

0.514"

0.510"

0.600"

0.210"

0.420"

M45938/11-11C

AC-0428-2

1/4-28

0.054"

0.515"

0.514"

0.510"

0.600"

0.210"

0.420"

M45938/11-12C

Series AC-U / Metric Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.38 mm min. in all directions from center, 0.76 mm total
      • Sheet Hardness-  HRB 70 / HB 125 or Less
      • Fastener Material-  300 Series Stainless Steel
      • Fastener Materials- Retainer-  300 Series Stainless Steel
      • Fastener Materials- Nut-  300 Series Stainless Steel
      • Finish- Retainer & Nut-  Passivated per ASTM A380

Series AC-U
Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

AC-M3-1

M3 x 0.5

0.97
mm

7.37
mm

7.35
mm

7.37
mm

9.14
mm

3.31
mm

7.62
mm

N/A

AC-M4-1

M4 x 0.7

0.97
mm

9.35
mm

9.33
mm

9.28
mm

11.18
mm

3.31
mm

8.64
mm

N/A

AC-M5-1

M5 x 0.8

0.97
mm

10.31
mm

10.29
mm

11.94
mm

4.32
mm

9.14
mm

N/A

AC-M3-2

M3 x 0.5

1.38
mm

7.37
mm

7.35
mm

7.37
mm

9.14
mm

3.31
mm

7.62
mm

N/A

AC-M4-2

M4 x 0.7

1.38
mm

9.35
mm

9.33
mm

9.28
mm

11.18
mm

3.31
mm

8.64
mm

N/A

AC-M5-2

M5 x 0.8

1.38
mm

10.31
mm

10.29
mm

11.94
mm

4.32
mm

9.14
mm

N/A

AC-M6-2

M6 x 1.0

1.38
mm

13.08
mm

13.06
mm

12.96
mm

15.24
mm

5.34
mm

10.67
mm

N/A

Series A4-U

Series A4-U / American Standard Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.015" min. in all directions from center, 0.030" total
      • Sheet Hardness-  HRB 88 / HB 183 or Less
      • Fastener Material-  400 Series Stainless Steel
      • Fastener Materials- Retainer-  400 Series Stainless Steel
      • Fastener Materials- Nut-  300 Series Stainless Steel
      • Finish- Retainer & Nut-  Passivated per ASTM A380

Series A4-U
American Standard Sizes
(SAE)

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

A4-440-1

4-40

0.038"

0.290"

0.289"

0.290"

0.360"

0.130"

0.300"

N/A

A4-632-1

6-32

0.038"

0.328"

0.327"

0.335"

0.390"

0.130"

0.320"

N/A

A4-832-1

8-32

0.038"

0.368"

0.367"

0.365"

0.440"

0.130"

0.340"

N/A

A4-032-1

10-32

0.038"

0.406"

0.405"

0.470"

0.170"

0.360"

N/A

Series A4-U / Metric Sizes

      • Shape-  Round
      • Thread Type-  Non-Locking
      • Float-  0.38 mm min. in all directions from center, 0.76 mm total
      • Sheet Hardness-  HRB 88 / HB 183 or Less
      • Fastener Material-  400 Series Stainless Steel
      • Fastener Materials- Retainer-  400 Series Stainless Steel
      • Fastener Materials- Nut-  300 Series Stainless Steel
      • Finish- Retainer & Nut-  Passivated per ASTM A380

Series A4-U
Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

"D"
Max.

"E"

"T1"
Max.

Min.
Distance
to Edge

Mil-Spec

A4-M3-1

M3 x 0.5

0.97
mm

7.37
mm

7.35
mm

7.37
mm

9.14
mm

3.31
mm

7.62
mm

N/A

A4-M4-1

M4 x 0.7

0.97
mm

9.35
mm

9.33
mm

9.28
mm

11.18
mm

3.31
mm

8.64
mm

N/A

A4-M5-1

M5 x 0.8

0.97
mm

10.31
mm

10.29
mm

11.94
mm

4.32
mm

9.14
mm

N/A
