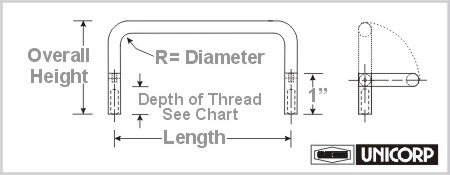

Folding Handle
3/8" - Round - 90° Free Fall - Internal Thread
(X - Series)

Back To Handles Page
*External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
Build Part Number
Material & Shape
Plating & Finish		 Depth of Threads
Applicable Tolerances
All Technical Data
Worksheet Helper		 Conversion Chart
Metric Handles
Standard Handles
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
3/8" Round
2" Overall Height
8- 32 Threads		 2" Overall Height
10- 32 Threads
Length Brass Aluminum Stainless Steel Length Brass Aluminum Stainless Steel
3" X1152 X1155 X1158 3" X1222 X1225 X1228
3- 1/2" X1162 X1165 X1168 3- 1/2" X1232 X1235 X1238
4" X1172 X1175 X1178 4" X1242 X1245 X1248
4- 9/16" X1182 X1185 X1188 4- 9/16" X1252 X1255 X1258
5" X1192 X1195 X1198 5" X1262 X1265 X1268
6" X1202 X1205 X1208 6" X1272 X1275 X1278
7" X1212 X1215 X1218 7" X1282 X1285 X1288
