Receptacle Nuts N10-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Receptacle Nuts N10

• Remain captive to panel and frame when unassembled • Flush

Series N10-U

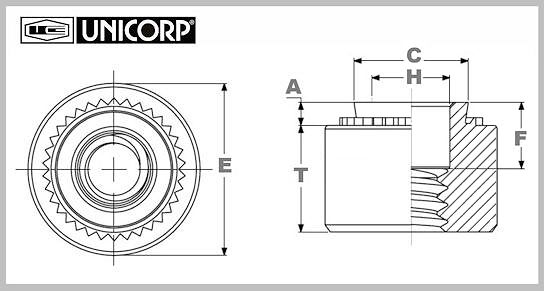

Series N10-U / American Standard Sizes
• Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633 • Mil-Spec- N/A
	Series N10-U American Standard Sizes (SAE)

Part
Number

Thread

"A"
(Shank)
Max.

"C"
Max.

"E"
Nom.

"F"

"H"
Nom.

"T"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

N10-440-1-ZI-U

4-40

0.038"

0.186"

0.280"

0.130"

0.126"

0.240"

0.040"

0.187"

0.220"

N10-632-1-ZI-U

6-32

0.038"

0.212"

0.310"

0.130"

0.156"

0.240"

0.040"

0.213"

0.270"

N10-832-1-ZI-U

8-32

0.038"

0.249"

0.340"

0.130"

0.187"

0.240"

0.040"

0.250"

0.280"

N10-032-1-ZI-U

10-32

0.038"

0.276"

0.370"

0.130"

0.213"

0.240"

0.040"

0.277"

0.310"

Series N10-U / Metric Sizes
• Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633 • Mil-Spec- N/A
	Series N10-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"C"
Max.

"E"
Nom.

"F"

"H"
Nom.

"T"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

N10-M3-1-ZI-U

M3 x 0.5

0.97
mm

4.73
mm

7.11
mm

3.30
mm

3.20
mm

6.00
mm

1.00
mm

4.75
mm

5.59
mm

N10-M4-1-ZI-U

M4 x 0.7

0.97
mm

6.33
mm

8.64
mm

3.30
mm

4.75
mm

6.00
mm

1.00
mm

6.35
mm

7.11
mm

N10-M5-1-ZI-U

M5 x 0.8

0.97
mm

7.01
mm

9.53
mm

3.30
mm

5.41
mm

6.00
mm

1.00
mm

7.04
mm

7.87
mm
