Metric Thumb Screws Push Type
M4000 Series

Back To Thumbscrews Page

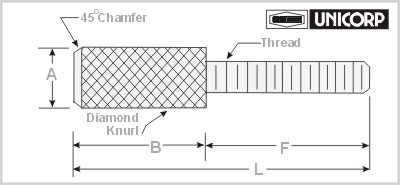

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
   Build Part Number
   Material & Shape
   Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Thumb Screws
 Metric Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # A  ±  0.28 B  ±  0.15 F  ±  0.15 L  ±  0.15 Thread
MTHS4001 4.5 9 16 25 M3.5 x 0.6
MTHS4002 4.5 9 19 28 M3.5 x 0.6
MTHS4003 4.5 9 22 31 M3.5 x 0.6
MTHS4004 4.5 9 25 34 M3.5 x 0.6
MTHS4005 4.5 9 28 37 M3.5 x 0.6
MTHS4006 4.5 9 31 40 M3.5 x 0.6
MTHS4007 4.5 9 34 43 M3.5 x 0.6
MTHS4008 4.5 9 37 46 M3.5 x 0.6
MTHS4009 4.5 9 40 49 M3.5 x 0.6
MTHS4010 4.5 9 43 52 M3.5 x 0.6
MTHS4011 4.5 9 46 55 M3.5 x 0.6
MTHS4012 4.5 9 49 58 M3.5 x 0.6
MTHS4013 5 9 16 25 M3.5 x 0.6
MTHS4014 5 9 19 28 M3.5 x 0.6
MTHS4015 5 9 22 31 M3.5 x 0.6
MTHS4016 5 9 25 34 M3.5 x 0.6
MTHS4017 5 9 28 37 M3.5 x 0.6
MTHS4018 5 9 31 40 M3.5 x 0.6
MTHS4019 5 9 34 43 M3.5 x 0.6
MTHS4020 5 9 37 46 M3.5 x 0.6
Part # A ±  0.28 B ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS4021 5 9 40 49 M3.5 x 0.6
MTHS4022 5 9 43 52 M3.5 x 0.6
MTHS4023 5 9 46 55 M3.5 x 0.6
MTHS4024 5 9 49 58 M3.5 x 0.6
MTHS4025 4.5 9 16 25 M4 x 0.7
MTHS4026 4.5 9 19 28 M4 x 0.7
MTHS4027 4.5 9 22 31 M4 x 0.7
MTHS4028 4.5 9 25 34 M4 x 0.7
MTHS4029 4.5 9 28 37 M4 x 0.7
MTHS4030 4.5 9 31 40 M4 x 0.7
MTHS4031 4.5 9 34 43 M4 x 0.7
MTHS4032 4.5 9 37 46 M4 x 0.7
MTHS4033 4.5 9 40 49 M4 x 0.7
MTHS4034 4.5 9 43 52 M4 x 0.7
MTHS4035 4.5 9 46 55 M4 x 0.7
MTHS4036 4.5 9 49 58 M4 x 0.7
MTHS4037 5 9 16 25 M4 x 0.7
MTHS4038 5 9 19 28 M4 x 0.7
MTHS4039 5 9 22 31 M4 x 0.7
MTHS4040 5 9 25 34 M4 x 0.7
Part # A ±  0.28 B ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS4041 5 9 28 37 M4 x 0.7
MTHS4042 5 9 31 40 M4 x 0.7
MTHS4043 5 9 34 43 M4 x 0.7
MTHS4044 5 9 37 46 M4 x 0.7
MTHS4045 5 9 40 49 M4 x 0.7
MTHS4046 5 9 43 52 M4 x 0.7
MTHS4047 5 9 46 55 M4 x 0.7
MTHS4048 5 9 49 58 M4 x 0.7
MTHS4049 6 13 16 29 M5 x 0.8
MTHS4050 6 13 19 32 M5 x 0.8
MTHS4051 6 13 22 35 M5 x 0.8
MTHS4052 6 13 25 38 M5 x 0.8
MTHS4053 6 13 28 41 M5 x 0.8
MTHS4054 6 13 31 44 M5 x 0.8
MTHS4055 6 13 34 47 M5 x 0.8
MTHS4056 6 13 37 50 M5 x 0.8
MTHS4057 6 13 40 53 M5 x 0.8
MTHS4058 6 13 43 56 M5 x 0.8
MTHS4059 6 13 46 59 M5 x 0.8
MTHS4060 6 13 49 62 M5 x 0.8
Part # A ±  0.28 B ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS4061 6.5 13 16 29 M5 x 0.8
MTHS4062 6.5 13 19 32 M5 x 0.8
MTHS4063 6.5 13 22 35 M5 x 0.8
MTHS4064 6.5 13 25 38 M5 x 0.8
MTHS4065 6.5 13 28 41 M5 x 0.8
MTHS4066 6.5 13 31 44 M5 x 0.8
MTHS4067 6.5 13 34 47 M5 x 0.8
MTHS4068 6.5 13 37 50 M5 x 0.8
MTHS4069 6.5 13 40 53 M5 x 0.8
MTHS4070 6.5 13 43 56 M5 x 0.8
MTHS4071 6.5 13 46 59 M5 x 0.8
MTHS4072 6.5 13 49 62 M5 x 0.8
MTHS4073 8 13 16 29 M6 x 1
MTHS4074 8 13 19 32 M6 x 1
MTHS4075 8 13 22 35 M6 x 1
MTHS4076 8 13 25 38 M6 x 1
MTHS4077 8 13 28 41 M6 x 1
MTHS4078 8 13 31 44 M6 x 1
MTHS4079 8 13 34 47 M6 x 1
MTHS4080 8 13 37 50 M6 x 1
MTHS4081 8 13 40 53 M6 x 1
MTHS4082 8 13 43 56 M6 x 1
MTHS4083 8 13 46 59 M6 x 1
MTHS4084 8 13 49 62 M6 x 1
