Metric Thumb Screws Knurl Type
M1000 Series
Back To Thumbscrews Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
   Material & Shape
   Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Thumb Screws
 Metric Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

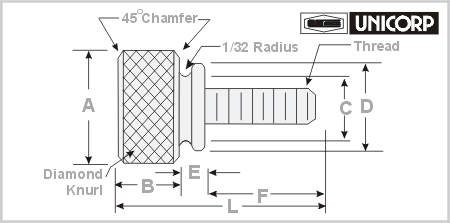

Part Number A  ±  0.28 B  ±  0.15 C ±  0.15 D  ±  0.15 E  ±  0.15 F  ±  0.15 L  ±  0.15 Thread
MTHS1001 10 5 6 8 3 6 14 M3 x 0.5
MTHS1002 10 5 6 8 3 8 16 M3 x 0.5
MTHS1003 10 5 6 8 3 9 17 M3 x 0.5
MTHS1004 10 5 6 8 3 11 19 M3 x 0.5
MTHS1005 10 5 6 8 3 13 21 M3 x 0.5
MTHS1006 10 5 6 8 3 8 16 M3.5 x 0.6
MTHS1007 10 5 6 8 3 9 17 M3.5 x 0.6
MTHS1008 10 5 6 8 3 11 19 M3.5 x 0.6
MTHS1009 10 5 6 8 3 13 21 M3.5 x 0.6
MTHS1010 10 5 6 8 3 15 23 M3.5 x 0.6
MTHS1011 10 6 6 8 3 8 17 M3.5 x 0.6
MTHS1012 10 6 6 8 3 10 19 M3.5 x 0.6
MTHS1013 10 6 6 8 3 12 21 M3.5 x 0.6
MTHS1014 10 6 6 8 3 14 23 M3.5 x 0.6
MTHS1015 10 6 6 8 3 15 24 M3.5 x 0.6
MTHS1016 11 5 6 10 3 9 17 M3.5 x 0.6
MTHS1017 11 5 6 10 3 11 19 M3.5 x 0.6
MTHS1018 11 5 6 10 3 13 21 M3.5 x 0.6
MTHS1019 11 5 6 10 3 15 23 M3.5 x 0.6
MTHS1020 11 6 6 10 3 10 19 M3.5 x 0.6
Part Number A ±  0.28 B ±  0.15 C ±  0.15 D ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS1021 11 6 6 10 3 12 21 M3.5 x 0.6
MTHS1022 11 6 6 10 3 13 23 M3.5 x 0.6
MTHS1023 11 6 6 10 3 15 24 M3.5 x 0.6
MTHS1024 13 5 8 11 3 9 17 M3.5 x 0.6
MTHS1025 13 5 8 11 3 11 19 M3.5 x 0.6
MTHS1026 13 5 8 11 3 13 21 M3.5 x 0.6
MTHS1027 13 5 8 11 3 15 23 M3.5 x 0.6
MTHS1028 13 5 8 11 3 16 24 M3.5 x 0.6
MTHS1029 13 6 8 11 3 10 19 M3.5 x 0.6
MTHS1030 13 6 8 11 3 12 21 M3.5 x 0.6
MTHS1031 13 6 8 11 3 14 23 M3.5 x 0.6
MTHS1032 13 6 8 11 3 15 24 M3.5 x 0.6
MTHS1033 10 5 6 8 3 8 16 M4 x 0.7
MTHS1034 10 5 6 8 3 9 17 M4 x 0.7
MTHS1035 10 5 6 8 3 11 19 M4 x 0.7
MTHS1036 10 5 6 8 3 13 21 M4 x 0.7
MTHS1037 10 5 6 8 3 15 23 M4 x 0.7
MTHS1038 11 5 6 10 3 8 16 M4 x 0.7
MTHS1039 11 5 6 10 3 9 17 M4 x 0.7
MTHS1040 11 5 6 10 3 11 19 M4 x 0.7
Part Number A ±  0.28 B ±  0.15 C ±  0.15 D ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS1041 11 5 6 10 3 13 21 M4 x 0.7
MTHS1042 11 5 6 10 3 15 23 M4 x 0.7
MTHS1043 11 6 6 10 3 8 17 M4 x 0.7
MTHS1044 11 6 6 10 3 10 19 M4 x 0.7
MTHS1045 11 6 6 10 3 12 21 M4 x 0.7
MTHS1046 11 6 6 10 3 14 23 M4 x 0.7
MTHS1047 11 6 6 10 3 15 24 M4 x 0.7
MTHS1048 13 5 8 11 3 8 16 M4 x 0.7
MTHS1049 13 5 8 11 3 9 17 M4 x 0.7
MTHS1050 13 5 8 11 3 11 19 M4 x 0.7
MTHS1051 13 5 8 11 3 13 21 M4 x 0.7
MTHS1052 13 5 8 11 3 15 23 M4 x 0.7
MTHS1053 13 5 8 11 3 16 24 M4 x 0.7
MTHS1054 13 6 8 11 3 8 17 M4 x 0.7
MTHS1055 13 6 8 11 3 10 19 M4 x 0.7
MTHS1056 13 6 8 11 3 12 21 M4 x 0.7
MTHS1057 13 6 8 11 3 14 23 M4 x 0.7
MTHS1058 13 6 8 11 3 15 24 M4 x 0.7
MTHS1059 13 6 8 11 3 16 25 M4 x 0.7
MTHS1060 10 5 6 8 3 8 16 M4 x 0.7
Part Number A ±  0.28 B ±  0.15 C ±  0.15 D ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS1061 10 5 6 8 3 9 17 M4 x 0.7
MTHS1062 10 5 6 8 3 11 19 M4 x 0.7
MTHS1063 10 5 6 8 3 13 21 M4 x 0.7
MTHS1064 10 5 6 8 3 15 23 M4 x 0.7
MTHS1065 11 5 6 10 3 8 16 M5 x 0.8
MTHS1066 11 5 6 10 3 9 17 M5 x 0.8
MTHS1067 11 5 6 10 3 11 19 M5 x 0.8
MTHS1068 11 5 6 10 3 13 21 M5 x 0.8
MTHS1069 11 5 6 10 3 15 23 M5 x 0.8
MTHS1070 11 5 6 10 3 16 25 M5 x 0.8
MTHS1071 11 6 6 10 3 9 17 M5 x 0.8
MTHS1072 11 6 6 10 3 10 19 M5 x 0.8
MTHS1073 11 6 6 10 3 12 21 M5 x 0.8
MTHS1074 11 6 6 10 3 14 23 M5 x 0.8
MTHS1075 11 6 6 10 3 15 24 M5 x 0.8
MTHS1076 11 6 6 10 3 16 25 M5 x 0.8
MTHS1077 13 5 8 11 3 8 16 M5 x 0.8
MTHS1078 13 5 8 11 3 9 17 M5 x 0.8
MTHS1079 13 5 8 11 3 11 19 M5 x 0.8
MTHS1080 13 5 8 11 3 13 21 M5 x 0.8
Part Number A ±  0.28 B ±  0.15 C ±  0.15 D ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS1081 13 5 8 11 3 15 23 M5 x 0.8
MTHS1082 13 5 8 11 3 16 24 M5 x 0.8
MTHS1083 13 6 8 11 3 8 17 M5 x 0.8
MTHS1084 13 6 8 11 3 10 19 M5 x 0.8
MTHS1085 13 6 8 11 3 12 21 M5 x 0.8
MTHS1086 13 6 8 11 3 14 23 M5 x 0.8
MTHS1087 13 6 8 11 3 15 24 M5 x 0.8
MTHS1088 13 6 8 11 3 16 25 M5 x 0.8
MTHS1089 13 5 8 11 3 9 17 M6 x 1
MTHS1090 13 5 8 11 3 11 19 M6 x 1
MTHS1091 13 5 8 11 3 13 21 M6 x 1
MTHS1092 13 5 8 11 3 15 23 M6 x 1
MTHS1093 13 5 8 11 3 16 24 M6 x 1
MTHS1094 13 5 8 11 3 17 25 M6 x 1
MTHS1095 13 5 8 11 3 18 26 M6 x 1
MTHS1096 13 6 8 11 3 8 17 M6 x 1
MTHS1097 13 6 8 11 3 10 19 M6 x 1
MTHS1098 13 6 8 11 3 12 21 M6 x 1
MTHS1099 13 6 8 11 3 14 23 M6 x 1
MTHS1100 13 6 8 11 3 15 24 M6 x 1
MTHS1101 13 6 8 11 3 16 25 M6 x 1
MTHS1102 13 6 8 11 3 17 26 M6 x 1
