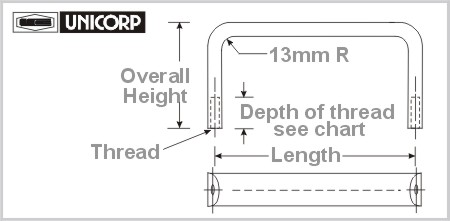

Metric Pull Handle 8mm x 16mm - Half Round - Internal Thread (MF - Series)  Back To Handles Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||
 |
|||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||
|
8mm x 16mm Half Round 33mm Overall Height M4 x 0.7 Threads |
8mm x 16mm Half Round 33mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MF1012 | MF1015 | MF1018 | 76 | MF1102 | MF1105 | MF1108 |
| 102 | MF1022 | MF1025 | MF1028 | 102 | MF1112 | MF1115 | MF1118 |
| 114 | MF1032 | MF1035 | MF1038 | 114 | MF1122 | MF1125 | MF1128 |
| 127 | MF1042 | MF1045 | MF1148 | 127 | MF1132 | MF1135 | MF1138 |
| 152 | MF1052 | MF1055 | MF1058 | 152 | MF1142 | MF1145 | MF1148 |
| 165 | MF1062 | MF1065 | MF1068 | 165 | MF1152 | MF1155 | MF1158 |
| 178 | MF1072 | MF1075 | MF1078 | 178 | MF1162 | MF1165 | MF1168 |
| 203 | MF1082 | MF1085 | MF1088 | 203 | MF1172 | MF1175 | MF1178 |
| 229 | MF1092 | MF1095 | MF1098 | 229 | MF1182 | MF1185 | MF1188 |
|
8mm x 16mm Half Round 38mm Overall Height M4 x 0.7 Threads |
8mm x 16mm Half Round 38mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MF1192 | MF1195 | MF1198 | 76 | MF1282 | MF1285 | MF1288 |
| 102 | MF1202 | MF1205 | MF1208 | 102 | MF1292 | MF1295 | MF1298 |
| 114 | MF1212 | MF1215 | MF1218 | 114 | MF1302 | MF1305 | MF1308 |
| 127 | MF1222 | MF1225 | MF1228 | 127 | MF1312 | MF1315 | MF1318 |
| 152 | MF1232 | MF1235 | MF1238 | 152 | MF1322 | MF1325 | MF1328 |
| 165 | MF1242 | MF1245 | MF1248 | 165 | MF1332 | MF1335 | MF1338 |
| 178 | MF1252 | MF1255 | MF1258 | 178 | MF1342 | MF1345 | MF1348 |
| 203 | MF1262 | MF1265 | MF1268 | 203 | MF1352 | MF1355 | MF1358 |
| 229 | MF1272 | MF1275 | MF1278 | 229 | MF1362 | MF1365 | MF1368 |
|
8mm x 16mm Half Round 44mm Overall Height M4 x 0.7 Threads |
8mm x 16mm Half Round 44mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MF1372 | MF1375 | MF1378 | 76 | MF1462 | MF1465 | MF1468 |
| 102 | MF1382 | MF1385 | MF1388 | 102 | MF1472 | MF1475 | MF1478 |
| 114 | MF1392 | MF1395 | MF1398 | 114 | MF1482 | MF1485 | MF1488 |
| 127 | MF1402 | MF1405 | MF1408 | 127 | MF1492 | MF1495 | MF1498 |
| 152 | MF1412 | MF1415 | MF1418 | 152 | MF1502 | MF1505 | MF1508 |
| 165 | MF1422 | MF1425 | MF1428 | 165 | MF1512 | MF1515 | MF1518 |
| 178 | MF1432 | MF1435 | MF1438 | 178 | MF1522 | MF1525 | MF1528 |
| 203 | MF1442 | MF1445 | MF1448 | 203 | MF1532 | MF1535 | MF1538 |
| 229 | MF1452 | MF1455 | MF1458 | 229 | MF1542 | MF1545 | MF1548 |
|
8mm x 16mm Half Round 51mm Overall Height M4 x 0.7 Threads |
8mm x 16mm Half Round 51mm Overall Height M5 x 0.8 Threads |
||||||
| Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
Length |
Brass Part # |
Aluminum Part # |
Stainless Steel Part # |
| 76 | MF1552 | MF1555 | MF1558 | 76 | MF1642 | MF1645 | MF1548 |
| 102 | MF1562 | MF1565 | MF1568 | 102 | MF1652 | MF1655 | MF1658 |
| 114 | MF1572 | MF1575 | MF1578 | 114 | MF1662 | MF1665 | MF1668 |
| 127 | MF1582 | MF1585 | MF1588 | 127 | MF1672 | MF1675 | MF1678 |
| 152 | MF1592 | MF1595 | MF1598 | 152 | MF1682 | MF1685 | MF1688 |
| 165 | MF1602 | MF1605 | MF1608 | 165 | MF1692 | MF1695 | MF1698 |
| 178 | MF1612 | MF1615 | MF1618 | 178 | MF1702 | MF1705 | MF1708 |
| 203 | MF1622 | MF1625 | MF1628 | 203 | MF1712 | MF1715 | MF1718 |
| 229 | MF1632 | MF1635 | MF1638 | 229 | MF1722 | MF1725 | MF1728 |
 |
 |
||||||
|
