Metric Extruded Handle - Bar Handle
8mm x 13mm - 2 Legs - Aluminum Insert
(MED - Series) Black Anodized Aluminum Insert

Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
Black Vinyl insert is standard.
Other color or wood grain vinyl available upon special order.
Legs:
This style handle may be ordered with either 8mm or 10mm diameter legs.
To order  8mm diameter legs: Add "A" to Part Number.
To order 10mm diameter legs: Add "B" to Part Number.
Example:  MED145A  /  MED145B
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

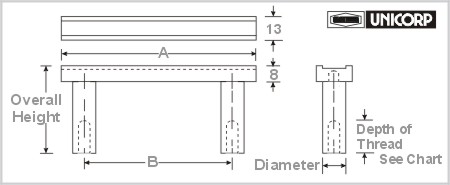

8mm  x 13mm Aluminum Extrusion
27mm Overall Height 30mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B
MED101 MED112 73 51 MED123 MED134 73 51
MED102 MED113 79 57 MED124 MED135 79 57
MED103 MED114 86 63 MED125 MED136 86 63
MED104 MED115 98 76 MED126 MED137 98 76
MED105 MED116 105 82 MED127 MED138 105 82
MED106 MED117 111 89 MED128 MED139 111 89
MED107 MED118 124 102 MED129 MED140 124 102
MED108 MED119 130 108 MED130 MED141 130 108
MED109 MED120 136 114 MED131 MED142 136 114
MED110 MED121 138 116 MED132 MED143 138 116
MED111 MED122 150 127 MED133 MED144 150 127
8mm  x 13mm Aluminum Extrusion
33mm Overall Height 36mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B
MED145 MED156 73 51 MED167 MED178 73 51
MED146 MED157 79 57 MED168 MED179 79 57
MED147 MED158 86 63 MED169 MED180 86 63
MED148 MED159 98 76 MED170 MED181 98 76
MED149 MED160 105 82 MED171 MED182 105 82
MED150 MED161 111 89 MED172 MED183 111 89
MED151 MED162 124 102 MED173 MED184 124 102
MED152 MED163 130 108 MED174 MED185 130 108
MED153 MED164 136 114 MED175 MED186 136 114
MED154 MED165 138 116 MED176 MED187 138 116
MED155 MED166 150 127 MED177 MED188 150 127
8mm  x 13mm Aluminum Extrusion
38mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B
MED189 MED200 73 51
MED190 MED201 79 57
MED191 MED202 86 63
MED192 MED203 98 76
MED193 MED204 105 82
MED194 MED205 111 89
MED195 MED206 124 102
MED196 MED207 130 108
MED197 MED208 136 114
MED198 MED209 138 116
MED199 MED210 150 127
