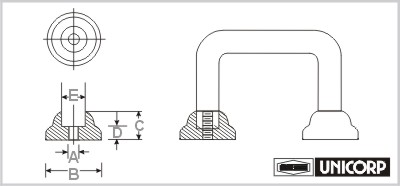

Metric Decorative Ferrules
(Group M10)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit. |
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
|
PART NUMBER |
MATERIAL |
A |
B |
C |
D |
E |
|
|
M10- 101 |
Brass |
6.1 |
19 |
8 |
2.4 |
8.3 |
|
|
M10- 104 |
Aluminum |
6.1 |
19 |
8 |
2.4 |
8.3 |
|
|
M10- 107 |
Stainless Steel |
6.1 |
19 |
8 |
2.4 |
8.3 |
|
|
|

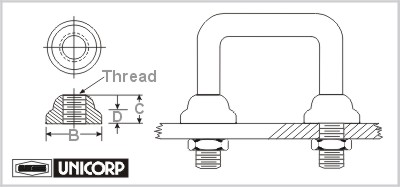

Metric Decorative Ferrules
(Group M11)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit. |
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
PART NUMBER |
MATERIAL |
THREAD |
B |
C |
D |
|
|
M11- 101 |
Brass |
M8
x 1 |
16 |
6.5 |
0.9 |
|
|
M11- 104 |
Aluminum |
M8
x 1 |
16 |
6.5 |
0.9 |
|
|
M11- 107 |
Stainless Steel |
M8
x 1 |
16 |
6.5 |
0.9 |
|
|
|
|
M11- 111 |
Brass |
M5
x
0.8 |
10 |
6.5 |
0.9 |
|
|
M11- 114 |
Aluminum |
M5
x
0.8 |
10 |
6.5 |
0.9 |
|
|
M11- 117 |
Stainless Steel |
M5
x
0.8 |
10 |
6.5 |
0.9 |
|
|
|
|
M11- 121 |
Brass |
M6
x
1 |
13 |
6.5 |
0.9 |
|
|
M11- 124 |
Aluminum |
M6
x
1 |
13 |
6.5 |
0.9 |
|
|
M11- 127 |
Stainless Steel |
M6
x
1 |
13 |
6.5 |
0.9 |
|
|
|

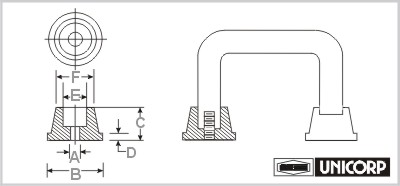

Metric Decorative Ferrules
(Group M12)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit. |
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
PART NUMBER |
MATERIAL |
A |
B |
C |
D |
E |
F |
|
|
M12- 101 |
Brass |
6.1 |
16 |
10 |
1.6 |
6.3 |
8 |
|
|
M12- 104 |
Aluminum |
6.1 |
16 |
10 |
1.6 |
6.3 |
8 |
|
|
M12- 107 |
Stainless Steel |
6.1 |
16 |
10 |
1.6 |
6.3 |
8 |
|
|
|
|
M12- 111 |
Brass |
6.1 |
19 |
10 |
1.6 |
8.3 |
10 |
|
|
M12- 114 |
Aluminum |
6.1 |
19 |
10 |
1.6 |
8.3 |
10 |
|
|
M12- 117 |
Stainless Steel |
6.1 |
19 |
10 |
1.6 |
8.3 |
10 |
|
|
|
|
M12- 121 |
Brass |
6.1 |
19 |
10 |
1.6 |
10.5 |
11.5 |
|
|
M12- 124 |
Aluminum |
6.1 |
19 |
10 |
1.6 |
10.5 |
11.5 |
|
|
M12- 127 |
Stainless Steel |
6.1 |
19 |
10 |
1.6 |
10.5 |
11.5 |
|
|
|

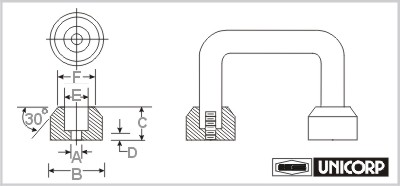

Metric Decorative Ferrules
(Group M13)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit. |
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
PART NUMBER |
MATERIAL |
A |
B |
C |
D |
E |
F |
|
|
M13- 101 |
Brass |
3.2 |
7 |
3.5 |
1.2 |
3.5 |
5.5 |
|
|
M13- 104 |
Aluminum |
3.2 |
7 |
3.5 |
1.2 |
3.5 |
5.5 |
|
|
M13- 107 |
Stainless Steel |
3.2 |
7 |
3.5 |
1.2 |
3.5 |
5.5 |
|
|
|
|
M13- 111 |
Brass |
3.7 |
7 |
3.5 |
1.2 |
4.1 |
5.5 |
|
|
M13- 114 |
Aluminum |
3.7 |
7 |
3.5 |
1.2 |
4.1 |
5.5 |
|
|
M13- 117 |
Stainless Steel |
3.7 |
7 |
3.5 |
1.2 |
4.1 |
5.5 |
|
|
|
|
M13- 121 |
Brass |
3.7 |
8 |
3.5 |
1.6 |
5.4 |
6.8 |
|
|
M13- 124 |
Aluminum |
3.7 |
8 |
3.5 |
1.6 |
5.4 |
6.8 |
|
|
M13- 127 |
Stainless Steel |
3.7 |
8 |
3.5 |
1.6 |
5.4 |
6.8 |
|
|
|
|
M13- 131 |
Brass |
4.3 |
10 |
3.5 |
1.6 |
6.3 |
8.3 |
|
|
M13- 134 |
Aluminum |
4.3 |
10 |
3.5 |
1.6 |
6.3 |
8.3 |
|
|
M13- 137 |
Stainless Steel |
4.3 |
10 |
3.5 |
1.6 |
6.3 |
8.3 |
|
|
|
|
M13- 141 |
Brass |
6.1 |
10 |
5 |
1.6 |
6.3 |
8.6 |
|
|
M13- 144 |
Aluminum |
6.1 |
10 |
5 |
1.6 |
6.3 |
8.6 |
|
|
M13- 147 |
Stainless Steel |
6.1 |
10 |
5 |
1.6 |
6.3 |
8.6 |
|
|
|
|
M13- 151 |
Brass |
6.1 |
11 |
5 |
1.6 |
6.7 |
8.6 |
|
|
M13- 154 |
Aluminum |
6.1 |
11 |
5 |
1.6 |
6.7 |
8.6 |
|
|
M13- 157 |
Stainless Steel |
6.1 |
11 |
5 |
1.6 |
6.7 |
8.6 |
|
|
|
|
M13- 161 |
Brass |
4.9 |
13 |
7 |
1.6 |
6.3 |
8.8 |
|
|
M13- 164 |
Aluminum |
4.9 |
13 |
7 |
1.6 |
6.3 |
8.8 |
|
|
M13-167 |
Stainless Steel |
4.9 |
13 |
7 |
1.6 |
6.3 |
8.8 |
|
|
|
|
M13- 171 |
Brass |
7 |
12 |
7 |
1.6 |
8.3 |
10 |
|
|
M13- 174 |
Aluminum |
7 |
12 |
7 |
1.6 |
8.3 |
10 |
|
|
M13- 177 |
Stainless Steel |
7 |
12 |
7 |
1.6 |
8.3 |
10 |
|
|
|
|
M13- 181 |
Brass |
7 |
13 |
7 |
1.6 |
8.3 |
10 |
|
|
M13- 184 |
Aluminum |
7 |
13 |
7 |
1.6 |
8.3 |
10 |
|
|
M13- 187 |
Stainless Steel |
7 |
13 |
7 |
1.6 |
8.3 |
10 |
|
|
|
|
M13- 191 |
Brass |
10 |
16 |
10 |
2.4 |
10.5 |
12 |
|
|
M13- 194 |
Aluminum |
10 |
16 |
10 |
2.4 |
10.5 |
12 |
|
|
M13- 197 |
Stainless Steel |
10 |
16 |
10 |
2.4 |
10.5 |
12 |
|
|
|
|
M13- 201 |
Brass |
12 |
19 |
10 |
2.4 |
13.5 |
15.5 |
|
|
M13- 204 |
Aluminum |
12 |
19 |
10 |
2.4 |
13.5 |
15.5 |
|
|
M13- 207 |
Stainless Steel |
12 |
19 |
10 |
2.4 |
13.5 |
15.5 |
|
|
|

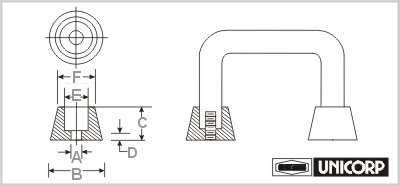

Metric Decorative Ferrules
(Group M14)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit. |
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
PART NUMBER |
MATERIAL |
A |
B |
C |
D |
E |
F |
|
|
M14- 101 |
Brass |
6.1 |
16 |
8 |
2.4 |
9.5 |
13 |
|
|
M14- 104 |
Aluminum |
6.1 |
16 |
8 |
2.4 |
9.5 |
13 |
|
|
M14- 107 |
Stainless Steel |
6.1 |
16 |
8 |
2.4 |
9.5 |
13 |
|
|
|
|
M14- 111 |
Brass |
10 |
19 |
11 |
3.2 |
12.5 |
14 |
|
|
M14- 114 |
Aluminum |
10 |
19 |
11 |
3.2 |
12.5 |
14 |
|
|
M14- 117 |
Stainless Steel |
10 |
19 |
11 |
3.2 |
12.5 |
14 |
|
|
|
|
M14- 121 |
Brass |
12 |
19 |
14 |
4.7 |
16.5 |
15 |
|
|
M14- 124 |
Aluminum |
12 |
19 |
14 |
4.7 |
16.5 |
15 |
|
|
M14- 127 |
Stainless Steel |
12 |
19 |
14 |
4.7 |
16.5 |
15 |
|
 |
|
