Metric 5mm Male-Male Standoffs
Back To Male-Male Standoffs Page

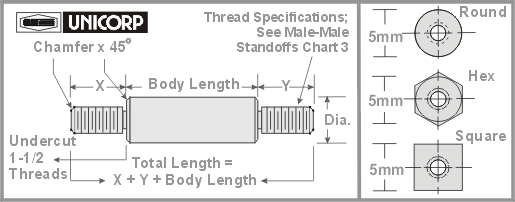

* External Thread has a 45° Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Am. Standard Male-Male
 Metric Male-Male
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1401 3 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1444 24.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1402 3.5 5 MMX1445 25 5
MMX1403 4 5 MMX1446 25.5 5
MMX1404 4.5 5 MMX1447 26 5
MMX1405 5 5 MMX1448 26.5 5
MMX1406 5.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1449 27 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1407 6 5 MMX1450 27.5 5
MMX1408 6.5 5 MMX1451 28 5
MMX1409 7 5 MMX1452 28.5 5
MMX1410 7.5 5 MMX1453 29 5
MMX1411 8 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1454 29.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1412 8.5 5 MMX1455 30 5
MMX1413 9 5 MMX1456 30.5 5
MMX1414 9.5 5 MMX1457 31 5
MMX1415 10 5 MMX1458 31.5 5
MMX1416 10.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1459 32 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1417 11 5 MMX1460 32.5 5
MMX1418 11.5 5 MMX1461 33 5
MMX1419 12 5 MMX1462 33.5 5
MMX1420 12.5 5 MMX1463 34 5
MMX1421 13 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1464 34.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1422 13.5 5 MMX1465 35 5
MMX1423 14 5 MMX1466 35.5 5
MMX1424 14.5 5 MMX1467 36 5
MMX1425 15 5 MMX1468 36.5 5
MMX1426 15.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1469 37 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1427 16 5 MMX1470 37.5 5
MMX1428 16.5 5 MMX1471 38 5
MMX1429 17 5 MMX1472 38.5 5
MMX1430 17.5 5 MMX1473 39 5
MMX1431 18 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1474 39.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1432 18.5 5 MMX1475 40 5
MMX1433 19 5 MMX1476 41 5
MMX1434 19.5 5 MMX1477 42 5
MMX1435 20 5 MMX1478 43 5
MMX1436 20.5 5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1479 44 5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1437 21 5 MMX1480 45 5
MMX1438 21.5 5 MMX1481 46 5
MMX1439 22 5 MMX1482 47 5
MMX1440 22.5 5 MMX1483 48 5
MMX1441 23 5 MMX1484 49 5
MMX1442 23.5 5 MMX1485 50 5
MMX1443 24 5
Thread Chart for Metric Male-Male Standoffs Part Number


Thread Size

Thread Code  &  Thread Length
M2.5 x 0.45  M2.5 - 1 3
M2.5 x 0.45  M2.5 - 2 4
M3 x 0.5  M3 - 1 5
M3 x 0.5  M3 - 2 6
M3.5 x 0.6  M3.5 - 1 6
M3.5 x 0.6  M3.5 - 2 6.5
M4 x 0.7  M4 - 1 8.5
M4 x 0.7  M4 - 2 9
M4 x 0.7  M4 - 3 9.5
*Mix and Match Different Threads and Lengths For Each Part.
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
