Metric M44R Retainer for Captive Screws
FSC-5304-411- Retainers listed here mate with Series M4100 Captive Screws

Back To Captive Screws & Retainers Page

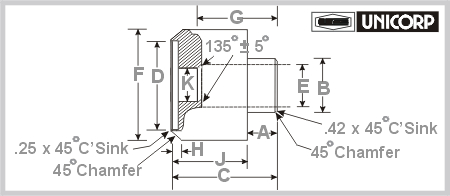

*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish

M44R Installation
All Technical Data
Worksheet Helper

Conversion Chart
Am. Standard Captive Screws
Metric Captive Screws

CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

Part Number

Thread

Panel
Thickness

A
±
0.15

B
±
0.05

C
±
0.3

D
+ 0.15
- 0.0

E
+ 0.1
- 0.03

F
±
0.1

G
+ 0.15
- 0.3

H
REF

J
±
0.15

K
+ 0.1
- 0.03

M44R01

M3.0 x 0.5

1.3- 1.7

1.6

6.3

4.9

5.3

7.6

9.4

3.2

M44R02

M3.0 x 0.5

2.1- 2.5

2.4

6.3

4.9

5.3

7.6

8.6

3.2

M44R03

M3.0 x 0.5

2.8- 3.6

3.2

6.3

4.9

5.3

7.6

7.8

3.2

M44R04

M3.0 x 0.5

4.3- 5.2

4.8

6.3

4.9

5.3

7.6

6.2

3.2

M44R05

M3.0 x 0.5

5.9- 6.7

6.4

6.3

4.9

5.3

7.6

4.6

3.2

M44R06

M3.5 x 0.6

1.3- 1.7

1.6

6.3

4.9

5.3

7.8

9.4

3.8

M44R07

M3.5 x 0.6

2.1- 2.5

2.4

6.3

4.9

5.3

7.8

8.6

3.8

M44R08

M3.5 x 0.6

2.8- 3.6

3.2

6.3

4.9

5.3

7.8

3.8

M44R09

M3.5 x 0.6

4.3- 5.2

4.8

6.3

4.9

5.3

7.8

6.2

3.8

M44R10

M3.5 x 0.6

5.9- 6.7

6.4

6.3

4.9

5.3

7.8

4.6

3.8

M44R11

M4.0 x 0.7

1.3- 1.7

1.6

7.9

9.8

10.8

14.4

4.5

M44R12

M4.0 x 0.7

2.1- 2.5

2.4

7.9

9.8

10.8

13.6

4.5

M44R13

M4.0 x 0.7

2.8- 3.6

3.2

7.9

9.8

10.8

12.8

4.5

M44R14

M4.0 x 0.7

4.3- 5.2

4.8

7.9

9.8

10.8

11.2

4.5

M44R15

M4.0 x 0.7

5.9- 6.7

6.4

7.9

9.8

10.8

9.6

4.5

Part Number

Thread

Panel
Thickness

A
±
0.15

B
±
0.05

C
±
0.3

D
+ 0.15
- 0.0

E
+ 0.1
- 0.03

F
±
0.1

G
+ 0.15
- 0.3

H
REF

J
±
0.15

K
+ 0.1
- 0.03

M44R16

M5.0 x 0.8

1.3- 1.7

1.6

7.9

9.8

14.4

5.2

M44R17

M5.0 x 0.8

2.1- 2.5

2.4

7.9

9.8

13.6

5.2

M44R18

M5.0 x 0.8

2.8- 3.6

3.2

7.9

9.8

12.8

5.2

M44R19

M5.0 x 0.8

4.3- 5.2

4.8

7.9

9.8

11.2

5.2

M44R20

M5.0 x 0.8

5.9- 6.7

6.4

7.9

9.8

9.6

5.2

M44R21

M6.0 x 1.0

1.3- 1.7

1.6

7.9

9.8

11.2

14.4

6.4

M44R22

M6.0 x 1.0

2.1- 2.5

2.4

7.9

9.8

11.2

13.6

6.4

M44R23

M6.0 x 1.0

2.8- 3.6

3.2

7.9

9.8

11.2

12.8

6.4

M44R24

M6.0 x 1.0

4.3- 5.2

4.8

7.9

9.8

11.2

6.4

M44R25

M6.0 x 1.0

5.9- 6.7

6.4

7.9

9.8

11.2

9.6

6.4

M44R26

M8.0 x 1.25

1.3- 1.7

1.6

9.6

9.8

11.3

1.1

14.4

8.3

M44R27

M8.0 x 1.25

2.1- 2.5

2.4

9.6

9.8

11.3

1.1

13.6

8.3

M44R28

M8.0 x 1.25

2.8- 3.6

3.2

9.6

9.8

11.3

1.1

12.8

8.3

M44R29

M8.0 x 1.25

4.3- 5.2

4.8

9.6

9.8

11.3

1.1

11.2

8.3

M44R30

M8.0 x 1.25

5.9- 6.7

6.4

9.6

9.8

11.3

1.1

9.6

8.3

Part Number

Thread

Panel
Thickness

A
±
0.15

B
±
0.05

C
±
0.3

D
+ 0.15
- 0.0

E
+ 0.1
- 0.03

F
±
0.1

G
+ 0.15
- 0.3

H
REF

J
±
0.15

K
+ 0.1
- 0.03

M44R31

M8.0 x 1.25

1.3- 1.7

1.6

9.6

11.3

1.1

14.4

8.3

M44R32

M8.0 x 1.25

2.1- 2.5

2.4

9.6

11.3

1.1

13.6

8.3

M44R33

M8.0 x 1.25

2.8- 3.6

3.2

9.6

11.3

1.1

12.8

8.3

M44R34

M8.0 x 1.25

4.3- 5.2

4.8

9.6

11.3

1.1

11.2

8.3

M44R35

M8.0 x 1.25

5.9- 6.7

6.4

9.6

11.3

1.1

9.6

8.3
