Metric 10mm Swage Standoffs (Threaded)

 Back To Swage Standoffs Page

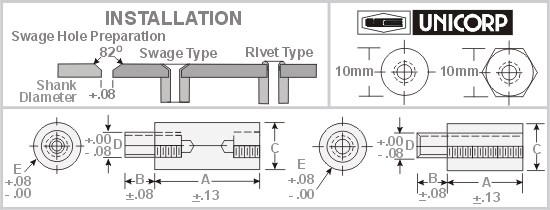

*Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish
   Shank Length		 Depth of Thread
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
American Standard Swages
Metric Swages
10mm - Major Diameter  x  5.94 Shank  x  M3.5x0.6 Thread
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread

Part
Number

 A B C D E Thread
MSS775 3 * 10 5.94 5.1 M3.5x0.6

MSS824

 27.5 * 10 5.94 5.1 M3.5x0.6
MSS776 3.5 * 10 5.94 5.1 M3.5x0.6 MSS825 28 * 10 5.94 5.1 M3.5x0.6
MSS777 4 * 10 5.94 5.1 M3.5x0.6 MSS826 28.5 * 10 5.94 5.1 M3.5x0.6
MSS778 4.5 * 10 5.94 5.1 M3.5x0.6 MSS827 29 * 10 5.94 5.1 M3.5x0.6
MSS779 5 * 10 5.94 5.1 M3.5x0.6 MSS828 29.5 * 10 5.94 5.1 M3.5x0.6
MSS780 5.5 * 10 5.94 5.1 M3.5x0.6 MSS829 30 * 10 5.94 5.1 M3.5x0.6
MSS781 6 * 10 5.94 5.1 M3.5x0.6 MSS830 30.5 * 10 5.94 5.1 M3.5x0.6
MSS782 6.5 * 10 5.94 5.1 M3.5x0.6 MSS831 31 * 10 5.94 5.1 M3.5x0.6
MSS783 7 * 10 5.94 5.1 M3.5x0.6 MSS832 31.5 * 10 5.94 5.1 M3.5x0.6
MSS784 7.5 * 10 5.94 5.1 M3.5x0.6 MSS833 32 * 10 5.94 5.1 M3.5x0.6
MSS785 8 * 10 5.94 5.1 M3.5x0.6 MSS834 32.5 * 10 5.94 5.1 M3.5x0.6
MSS786 8.5 * 10 5.94 5.1 M3.5x0.6 MSS835 33 * 10 5.94 5.1 M3.5x0.6
MSS787 9 * 10 5.94 5.1 M3.5x0.6 MSS836 33.5 * 10 5.94 5.1 M3.5x0.6
MSS788 9.5 * 10 5.94 5.1 M3.5x0.6 MSS837 34 * 10 5.94 5.1 M3.5x0.6
MSS789 10 * 10 5.94 5.1 M3.5x0.6 MSS838 34.5 * 10 5.94 5.1 M3.5x0.6
MSS790 10.5 * 10 5.94 5.1 M3.5x0.6 MSS839 35 * 10 5.94 5.1 M3.5x0.6
MSS791 11 * 10 5.94 5.1 M3.5x0.6 MSS840 35.5 * 10 5.94 5.1 M3.5x0.6
MSS792 11.5 * 10 5.94 5.1 M3.5x0.6 MSS841 36 * 10 5.94 5.1 M3.5x0.6
MSS793 12 * 10 5.94 5.1 M3.5x0.6 MSS842 36.5 * 10 5.94 5.1 M3.5x0.6
MSS794 12.5 * 10 5.94 5.1 M3.5x0.6 MSS843 37 * 10 5.94 5.1 M3.5x0.6
MSS795 13 * 10 5.94 5.1 M3.5x0.6 MSS844 37.5 * 10 5.94 5.1 M3.5x0.6
MSS796 13.5 * 10 5.94 5.1 M3.5x0.6 MSS845 38 * 10 5.94 5.1 M3.5x0.6
MSS797 14 * 10 5.94 5.1 M3.5x0.6 MSS846 38.5 * 10 5.94 5.1 M3.5x0.6
MSS798 14.5 * 10 5.94 5.1 M3.5x0.6 MSS847 39 * 10 5.94 5.1 M3.5x0.6
MSS799 15 * 10 5.94 5.1 M3.5x0.6 MSS848 39.5 * 10 5.94 5.1 M3.5x0.6
MSS800 15.5 * 10 5.94 5.1 M3.5x0.6 MSS849 40 * 10 5.94 5.1 M3.5x0.6
MSS801 16 * 10 5.94 5.1 M3.5x0.6 MSS850 40.5 * 10 5.94 5.1 M3.5x0.6
MSS802 16.5 * 10 5.94 5.1 M3.5x0.6 MSS851 41 * 10 5.94 5.1 M3.5x0.6
MSS803 17 * 10 5.94 5.1 M3.5x0.6 MSS852 41.5 * 10 5.94 5.1 M3.5x0.6
MSS804 17.5 * 10 5.94 5.1 M3.5x0.6 MSS853 42 * 10 5.94 5.1 M3.5x0.6
MSS805 18 * 10 5.94 5.1 M3.5x0.6 MSS854 42.5 * 10 5.94 5.1 M3.5x0.6
MSS806 18.5 * 10 5.94 5.1 M3.5x0.6 MSS855 43 * 10 5.94 5.1 M3.5x0.6
MSS807 19 * 10 5.94 5.1 M3.5x0.6 MSS856 43.5 * 10 5.94 5.1 M3.5x0.6
MSS808 19.5 * 10 5.94 5.1 M3.5x0.6 MSS857 44 * 10 5.94 5.1 M3.5x0.6
MSS809 20 * 10 5.94 5.1 M3.5x0.6 MSS858 44.5 * 10 5.94 5.1 M3.5x0.6
MSS810 20.5 * 10 5.94 5.1 M3.5x0.6 MSS859 45 * 10 5.94 5.1 M3.5x0.6
MSS811 21 * 10 5.94 5.1 M3.5x0.6 MSS860 45.5 * 10 5.94 5.1 M3.5x0.6
MSS812 21.5 * 10 5.94 5.1 M3.5x0.6 MSS861 46 * 10 5.94 5.1 M3.5x0.6
MSS813 22 * 10 5.94 5.1 M3.5x0.6 MSS862 46.5 * 10 5.94 5.1 M3.5x0.6
MSS814 22.5 * 10 5.94 5.1 M3.5x0.6 MSS863 47 * 10 5.94 5.1 M3.5x0.6
MSS815 23 * 10 5.94 5.1 M3.5x0.6 MSS864 47.5 * 10 5.94 5.1 M3.5x0.6
MSS816 23.5 * 10 5.94 5.1 M3.5x0.6 MSS865 48 * 10 5.94 5.1 M3.5x0.6
MSS817 24 * 10 5.94 5.1 M3.5x0.6 MSS866 48.5 * 10 5.94 5.1 M3.5x0.6
MSS818 24.5 * 10 5.94 5.1 M3.5x0.6 MSS867 49 * 10 5.94 5.1 M3.5x0.6
MSS819 25 * 10 5.94 5.1 M3.5x0.6 MSS868 49.5 * 10 5.94 5.1 M3.5x0.6
MSS820 25.5 * 10 5.94 5.1 M3.5x0.6 MSS869 50 * 10 5.94 5.1 M3.5x0.6
MSS821 26 * 10 5.94 5.1 M3.5x0.6 MSS870 50.5 * 10 5.94 5.1 M3.5x0.6
MSS822 26.5 * 10 5.94 5.1 M3.5x0.6 MSS871 51 * 10 5.94 5.1 M3.5x0.6
MSS823 27 * 10 5.94 5.1 M3.5x0.6
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
10mm Diameter UP5 AN820 AN1080 3 - 5.5mm MSS775 - MSS780
UP5 AN830 AN1090 6 - 12.5mm MSS781 - MSS794
UP5 AN840 AN1100 13 -18.5mm MSS795 - MSS806
UP5 AN850 AN1110 19 - 51mm MSS807 - MSS871
10mm - Major Diameter  x  5.94 Shank  x  M4.0x0.7 Thread
SELECT Part
Number then Go to Build Part
Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS875 3 * 10 5.94 5.1 M4.0x0.7 MSS924 27.5 * 10 5.94 5.1 M4.0x0.7
MSS876 3.5 * 10 5.94 5.1 M4.0x0.7 MSS925 28 * 10 5.94 5.1 M4.0x0.7
MSS877 4 * 10 5.94 5.1 M4.0x0.7 MSS926 28.5 * 10 5.94 5.1 M4.0x0.7
MSS878 4.5 * 10 5.94 5.1 M4.0x0.7 MSS927 29 * 10 5.94 5.1 M4.0x0.7
MSS879 5 * 10 5.94 5.1 M4.0x0.7 MSS928 29.5 * 10 5.94 5.1 M4.0x0.7
MSS880 5.5 * 10 5.94 5.1 M4.0x0.7 MSS929 30 * 10 5.94 5.1 M4.0x0.7
MSS881 6 * 10 5.94 5.1 M4.0x0.7 MSS930 30.5 * 10 5.94 5.1 M4.0x0.7
MSS882 6.5 * 10 5.94 5.1 M4.0x0.7 MSS931 31 * 10 5.94 5.1 M4.0x0.7
MSS883 7 * 10 5.94 5.1 M4.0x0.7 MSS932 31.5 * 10 5.94 5.1 M4.0x0.7
MSS884 7.5 * 10 5.94 5.1 M4.0x0.7 MSS933 32 * 10 5.94 5.1 M4.0x0.7
MSS885 8 * 10 5.94 5.1 M4.0x0.7 MSS934 32.5 * 10 5.94 5.1 M4.0x0.7
MSS886 8.5 * 10 5.94 5.1 M4.0x0.7 MSS935 33 * 10 5.94 5.1 M4.0x0.7
MSS887 9 * 10 5.94 5.1 M4.0x0.7 MSS936 33.5 * 10 5.94 5.1 M4.0x0.7
MSS888 9.5 * 10 5.94 5.1 M4.0x0.7 MSS937 34 * 10 5.94 5.1 M4.0x0.7
MSS889 10 * 10 5.94 5.1 M4.0x0.7 MSS938 34.5 * 10 5.94 5.1 M4.0x0.7
MSS890 10.5 * 10 5.94 5.1 M4.0x0.7 MSS939 35 * 10 5.94 5.1 M4.0x0.7
MSS891 11 * 10 5.94 5.1 M4.0x0.7 MSS940 35.5 * 10 5.94 5.1 M4.0x0.7
MSS892 11.5 * 10 5.94 5.1 M4.0x0.7 MSS941 36 * 10 5.94 5.1 M4.0x0.7
MSS893 12 * 10 5.94 5.1 M4.0x0.7 MSS942 36.5 * 10 5.94 5.1 M4.0x0.7
MSS894 12.5 * 10 5.94 5.1 M4.0x0.7 MSS943 37 * 10 5.94 5.1 M4.0x0.7
MSS895 13 * 10 5.94 5.1 M4.0x0.7 MSS944 37.5 * 10 5.94 5.1 M4.0x0.7
MSS896 13.5 * 10 5.94 5.1 M4.0x0.7 MSS945 38 * 10 5.94 5.1 M4.0x0.7
MSS897 14 * 10 5.94 5.1 M4.0x0.7 MSS946 38.5 * 10 5.94 5.1 M4.0x0.7
MSS898 14.5 * 10 5.94 5.1 M4.0x0.7 MSS947 39 * 10 5.94 5.1 M4.0x0.7
MSS899 15 * 10 5.94 5.1 M4.0x0.7 MSS948 39.5 * 10 5.94 5.1 M4.0x0.7
MSS900 15.5 * 10 5.94 5.1 M4.0x0.7 MSS949 40 * 10 5.94 5.1 M4.0x0.7
MSS901 16 * 10 5.94 5.1 M4.0x0.7 MSS950 40.5 * 10 5.94 5.1 M4.0x0.7
MSS902 16.5 * 10 5.94 5.1 M4.0x0.7 MSS951 41 * 10 5.94 5.1 M4.0x0.7
MSS903 17 * 10 5.94 5.1 M4.0x0.7 MSS952 41.5 * 10 5.94 5.1 M4.0x0.7
MSS904 17.5 * 10 5.94 5.1 M4.0x0.7 MSS953 42 * 10 5.94 5.1 M4.0x0.7
MSS905 18 * 10 5.94 5.1 M4.0x0.7 MSS954 42.5 * 10 5.94 5.1 M4.0x0.7
MSS906 18.5 * 10 5.94 5.1 M4.0x0.7 MSS955 43 * 10 5.94 5.1 M4.0x0.7
MSS907 19 * 10 5.94 5.1 M4.0x0.7 MSS956 43.5 * 10 5.94 5.1 M4.0x0.7
MSS908 19.5 * 10 5.94 5.1 M4.0x0.7 MSS957 44 * 10 5.94 5.1 M4.0x0.7
MSS909 20 * 10 5.94 5.1 M4.0x0.7 MSS958 44.5 * 10 5.94 5.1 M4.0x0.7
MSS910 20.5 * 10 5.94 5.1 M4.0x0.7 MSS959 45 * 10 5.94 5.1 M4.0x0.7
MSS911 21 * 10 5.94 5.1 M4.0x0.7 MSS960 45.5 * 10 5.94 5.1 M4.0x0.7
MSS912 21.5 * 10 5.94 5.1 M4.0x0.7 MSS961 46 * 10 5.94 5.1 M4.0x0.7
MSS913 22 * 10 5.94 5.1 M4.0x0.7 MSS962 46.5 * 10 5.94 5.1 M4.0x0.7
MSS914 22.5 * 10 5.94 5.1 M4.0x0.7 MSS963 47 * 10 5.94 5.1 M4.0x0.7
MSS915 23 * 10 5.94 5.1 M4.0x0.7 MSS964 47.5 * 10 5.94 5.1 M4.0x0.7
MSS916 23.5 * 10 5.94 5.1 M4.0x0.7 MSS965 48 * 10 5.94 5.1 M4.0x0.7
MSS917 24 * 10 5.94 5.1 M4.0x0.7 MSS966 48.5 * 10 5.94 5.1 M4.0x0.7
MSS918 24.5 * 10 5.94 5.1 M4.0x0.7 MSS967 49 * 10 5.94 5.1 M4.0x0.7
MSS919 25 * 10 5.94 5.1 M4.0x0.7 MSS968 49.5 * 10 5.94 5.1 M4.0x0.7
MSS920 25.5 * 10 5.94 5.1 M4.0x0.7 MSS969 50 * 10 5.94 5.1 M4.0x0.7
MSS921 26 * 10 5.94 5.1 M4.0x0.7 MSS970 50.5 * 10 5.94 5.1 M4.0x0.7
MSS922 26.5 * 10 5.94 5.1 M4.0x0.7 MSS971 51 * 10 5.94 5.1 M4.0x0.7
MSS923 27 * 10 5.94 5.1 M4.0x0.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
10mm Diameter UP5 AN820 AN1080 3 - 5.5mm MSS875 - MSS880
UP5 AN830 AN1090 6 - 12.5mm MSS881 - MSS894
UP5 AN840 AN1100 13 -18.5mm MSS895 - MSS906
UP5 AN850 AN1110 19 - 51mm MSS907 - MSS971
10mm - Major Diameter  x  5.94 Shank  x  M5.0x0.8 Thread
SELECT Part
Number then Go to Build Part
Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
MSS975 3 * 10 5.94 5.1 M5.0x0.8 MSS1024 27.5 * 10 5.94 5.1 M5.0x0.8
MSS976 3.5 * 10 5.94 5.1 M5.0x0.8 MSS1025 28 * 10 5.94 5.1 M5.0x0.8
MSS977 4 * 10 5.94 5.1 M5.0x0.8 MSS1026 28.5 * 10 5.94 5.1 M5.0x0.8
MSS978 4.5 * 10 5.94 5.1 M5.0x0.8 MSS1027 29 * 10 5.94 5.1 M5.0x0.8
MSS979 5 * 10 5.94 5.1 M5.0x0.8 MSS1028 29.5 * 10 5.94 5.1 M5.0x0.8
MSS980 5.5 * 10 5.94 5.1 M5.0x0.8 MSS1029 30 * 10 5.94 5.1 M5.0x0.8
MSS981 6 * 10 5.94 5.1 M5.0x0.8 MSS1030 30.5 * 10 5.94 5.1 M5.0x0.8
MSS982 6.5 * 10 5.94 5.1 M5.0x0.8 MSS1031 31 * 10 5.94 5.1 M5.0x0.8
MSS983 7 * 10 5.94 5.1 M5.0x0.8 MSS1032 31.5 * 10 5.94 5.1 M5.0x0.8
MSS984 7.5 * 10 5.94 5.1 M5.0x0.8 MSS1033 32 * 10 5.94 5.1 M5.0x0.8
MSS985 8 * 10 5.94 5.1 M5.0x0.8 MSS1034 32.5 * 10 5.94 5.1 M5.0x0.8
MSS986 8.5 * 10 5.94 5.1 M5.0x0.8 MSS1035 33 * 10 5.94 5.1 M5.0x0.8
MSS987 9 * 10 5.94 5.1 M5.0x0.8 MSS1036 33.5 * 10 5.94 5.1 M5.0x0.8
MSS988 9.5 * 10 5.94 5.1 M5.0x0.8 MSS1037 34 * 10 5.94 5.1 M5.0x0.8
MSS989 10 * 10 5.94 5.1 M5.0x0.8 MSS1038 34.5 * 10 5.94 5.1 M5.0x0.8
MSS990 10.5 * 10 5.94 5.1 M5.0x0.8 MSS1039 35 * 10 5.94 5.1 M5.0x0.8
MSS991 11 * 10 5.94 5.1 M5.0x0.8 MSS1040 35.5 * 10 5.94 5.1 M5.0x0.8
MSS992 11.5 * 10 5.94 5.1 M5.0x0.8 MSS1041 36 * 10 5.94 5.1 M5.0x0.8
MSS993 12 * 10 5.94 5.1 M5.0x0.8 MSS1042 36.5 * 10 5.94 5.1 M5.0x0.8
MSS994 12.5 * 10 5.94 5.1 M5.0x0.8 MSS1043 37 * 10 5.94 5.1 M5.0x0.8
MSS995 13 * 10 5.94 5.1 M5.0x0.8 MSS1044 37.5 * 10 5.94 5.1 M5.0x0.8
MSS996 13.5 * 10 5.94 5.1 M5.0x0.8 MSS1045 38 * 10 5.94 5.1 M5.0x0.8
MSS997 14 * 10 5.94 5.1 M5.0x0.8 MSS1046 38.5 * 10 5.94 5.1 M5.0x0.8
MSS998 14.5 * 10 5.94 5.1 M5.0x0.8 MSS1047 39 * 10 5.94 5.1 M5.0x0.8
MSS999 15 * 10 5.94 5.1 M5.0x0.8 MSS1048 39.5 * 10 5.94 5.1 M5.0x0.8
MSS1000 15.5 * 10 5.94 5.1 M5.0x0.8 MSS1049 40 * 10 5.94 5.1 M5.0x0.8
MSS1001 16 * 10 5.94 5.1 M5.0x0.8 MSS1050 40.5 * 10 5.94 5.1 M5.0x0.8
MSS1002 16.5 * 10 5.94 5.1 M5.0x0.8 MSS1051 41 * 10 5.94 5.1 M5.0x0.8
MSS1003 17 * 10 5.94 5.1 M5.0x0.8 MSS1052 41.5 * 10 5.94 5.1 M5.0x0.8
MSS1004 17.5 * 10 5.94 5.1 M5.0x0.8 MSS1053 42 * 10 5.94 5.1 M5.0x0.8
MSS1005 18 * 10 5.94 5.1 M5.0x0.8 MSS1054 42.5 * 10 5.94 5.1 M5.0x0.8
MSS1006 18.5 * 10 5.94 5.1 M5.0x0.8 MSS1055 43 * 10 5.94 5.1 M5.0x0.8
MSS1007 19 * 10 5.94 5.1 M5.0x0.8 MSS1056 43.5 * 10 5.94 5.1 M5.0x0.8
MSS1008 19.5 * 10 5.94 5.1 M5.0x0.8 MSS1057 44 * 10 5.94 5.1 M5.0x0.8
MSS1009 20 * 10 5.94 5.1 M5.0x0.8 MSS1058 44.5 * 10 5.94 5.1 M5.0x0.8
MSS1010 20.5 * 10 5.94 5.1 M5.0x0.8 MSS1059 45 * 10 5.94 5.1 M5.0x0.8
MSS1011 21 * 10 5.94 5.1 M5.0x0.8 MSS1060 45.5 * 10 5.94 5.1 M5.0x0.8
MSS1012 21.5 * 10 5.94 5.1 M5.0x0.8 MSS1061 46 * 10 5.94 5.1 M5.0x0.8
MSS1013 22 * 10 5.94 5.1 M5.0x0.8 MSS1062 46.5 * 10 5.94 5.1 M5.0x0.8
MSS1014 22.5 * 10 5.94 5.1 M5.0x0.8 MSS1063 47 * 10 5.94 5.1 M5.0x0.8
MSS1015 23 * 10 5.94 5.1 M5.0x0.8 MSS1064 47.5 * 10 5.94 5.1 M5.0x0.8
MSS1016 23.5 * 10 5.94 5.1 M5.0x0.8 MSS1065 48 * 10 5.94 5.1 M5.0x0.8
MSS1017 24 * 10 5.94 5.1 M5.0x0.8 MSS1066 48.5 * 10 5.94 5.1 M5.0x0.8
MSS1018 24.5 * 10 5.94 5.1 M5.0x0.8 MSS1067 49 * 10 5.94 5.1 M5.0x0.8
MSS1019 25 * 10 5.94 5.1 M5.0x0.8 MSS1068 49.5 * 10 5.94 5.1 M5.0x0.8
MSS1020 25.5 * 10 5.94 5.1 M5.0x0.8 MSS1069 50 * 10 5.94 5.1 M5.0x0.8
MSS1021 26 * 10 5.94 5.1 M5.0x0.8 MSS1070 50.5 * 10 5.94 5.1 M5.0x0.8
MSS1022 26.5 * 10 5.94 5.1 M5.0x0.8 MSS1071 51 * 10 5.94 5.1 M5.0x0.8
MSS1023 27 * 10 5.94 5.1 M5.0x0.8
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part
Number
10mm Diameter UP5 AN820 AN1080 3 - 5.5mm MSS975 -  MSS980
UP5 AN830 AN1090 6 - 12.5mm MSS981 -  MSS994
UP5 AN840 AN1100 13 - 18.5mm MSS995 -  MSS1006
UP5 AN850 AN1110 19 - 51mm MSS1007 -  MSS1071

Phone:  973-674-1700        Toll Free:  1-800-526-1389        Fax:  973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.


291 Cleveland St,  Orange,  New Jersey  07050  USA
Mailing Address:  P.O. Box 280,  Orange,  New Jersey  07051-0280  USA

Feedback  I  Legal Notice  I  Copyright  I  Services  I  Jobs  I  Contact Us  I  Email Us  I  Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
