 Metric 10mm Male-Female Standoffs (Threaded)
 Back To Male-Female Standoffs Page

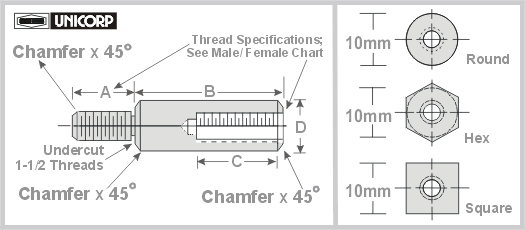

 *External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Am. Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B
MMF2401 5 MMF2460 34.5 MMF2519 64 MMF2578 93.5 MMF2635 144
MMF2402 5.5 MMF2461 35 MMF2520 64.5 MMF2579 94 MMF2636 145
MMF2403 6 MMF2462 35.5 MMF2521 65 MMF2580 94.5 MMF2637 146
MMF2404 6.5 MMF2463 36 MMF2522 65.5 MMF2581 95 MMF2638 147
MMF2405 7 MMF2464 36.5 MMF2523 66 MMF2582 95.5 MMF2639 148
MMF2406 7.5 MMF2465 37 MMF2524 66.5 MMF2583 96 MMF2640 149
MMF2407 8 MMF2466 37.5 MMF2525 67 MMF2584 96.5 MMF2641 150
MMF2408 8.5 MMF2467 38 MMF2526 67.5 MMF2585 97 MMF2642 151
MMF2409 9 MMF2468 38.5 MMF2527 68 MMF2586 97.5 MMF2643 152
MMF2410 9.5 MMF2469 39 MMF2528 68.5 MMF2587 98 MMF2644 153
MMF2411 10 MMF2470 39.5 MMF2529 69 MMF2588 98.5 MMF2645 154
MMF2412 10.5 MMF2471 40 MMF2530 69.5 MMF2589 99 MMF2646 155
MMF2413 11 MMF2472 40.5 MMF2531 70 MMF2590 99.5 MMF2647 156
MMF2414 11.5 MMF2473 41 MMF2532 70.5 MMF2591 100 MMF2648 157
MMF2415 12 MMF2474 41.5 MMF2533 71 MMF2592 101 MMF2649 158
MMF2416 12.5 MMF2475 42 MMF2534 71.5 MMF2593 102 MMF2650 159
MMF2417 13 MMF2476 42.5 MMF2535 72 MMF2594 103 MMF2651 160
MMF2418 13.5 MMF2477 43 MMF2536 72.5 MMF2595 104 MMF2652 161
MMF2419 14 MMF2478 43.5 MMF2537 73 MMF2596 105 MMF2653 162
MMF2420 14.5 MMF2479 44 MMF2538 73.5 MMF2597 106 MMF2654 163
MMF2421 15 MMF2480 44.5 MMF2539 74 MMF2598 107 MMF2655 164
MMF2422 15.5 MMF2481 45 MMF2540 74.5 MMF2599 108 MMF2656 165
MMF2423 16 MMF2482 45.5 MMF2541 75 MMF2600 109 MMF2657 166
MMF2424 16.5 MMF2483 46 MMF2542 75.5 MMF2601 110 MMF2658 167
MMF2425 17 MMF2484 46.5 MMF2543 76 MMF2602 111 MMF2659 168
MMF2426 17.5 MMF2485 47 MMF2544 76.5 MMF2603 112 MMF2660 169
MMF2427 18 MMF2486 47.5 MMF2545 77 MMF2604 113 MMF2661 170
MMF2428 18.5 MMF2487 48 MMF2546 77.5 MMF2605 114 MMF2662 171
MMF2429 19 MMF2488 48.5 MMF2547 78 MMF2606 115 MMF2663 172
MMF2430 19.5 MMF2489 49 MMF2548 78.5 MMF2607 116 MMF2664 173
MMF2431 20 MMF2490 49.5 MMF2549 79 MMF2608 117 MMF2665 174
MMF2432 20.5 MMF2491 50 MMF2550 79.5 MMF2609 118 MMF2666 175
MMF2433 21 MMF2492 50.5 MMF2551 80 MMF2610 119 MMF2667 176
MMF2434 21.5 MMF2493 51 MMF2552 80.5 MMF2611 120 MMF2668 177
MMF2435 22 MMF2494 51.5 MMF2553 81 MMF2612 121 MMF2669 178
MMF2436 22.5 MMF2495 52 MMF2554 81.5 MMF2613 122 MMF2670 179
MMF2437 23 MMF2496 52.5 MMF2555 82 MMF2614 123 MMF2671 180
MMF2438 23.5 MMF2497 53 MMF2556 82.5 MMF2615 124 MMF2672 181
MMF2439 24 MMF2498 53.5 MMF2557 83 MMF2616 125 MMF2673 182
MMF2440 24.5 MMF2499 54 MMF2558 83.5 MMF2617 126 MMF2674 183
MMF2441 25 MMF2500 54.5 MMF2559 84 MMF2618 127 MMF2675 184
MMF2442 25.5 MMF2501 55 MMF2560 84.5 MMF2619 128 MMF2676 185
MMF2443 26 MMF2502 55.5 MMF2561 85 MMF2620 129 MMF2677 186
MMF2444 26.5 MMF2503 56 MMF2562 85.5 MMF2621 130 MMF2678 187
MMF2445 27 MMF2504 56.5 MMF2563 86 MMF2622 131 MMF2679 188
MMF2446 27.5 MMF2505 57 MMF2564 86.5 MMF2623 132 MMF2680 189
MMF2447 28 MMF2506 57.5 MMF2565 87 MMF2624 133 MMF2681 190
MMF2448 28.5 MMF2507 58 MMF2566 87.5 MMF2625 134 MMF2682 191
MMF2449 29 MMF2508 58.5 MMF2567 88 MMF2626 135 MMF2683 192
MMF2450 29.5 MMF2509 59 MMF2568 88.5 MMF2627 136 MMF2684 193
MMF2451 30 MMF2510 59.5 MMF2569 89 MMF2628 137 MMF2685 194
MMF2452 30.5 MMF2511 60 MMF2570 89.5 MMF2629 138 MMF2686 195
MMF2453 31 MMF2512 60.5 MMF2571 90 MMF2630 139 MMF2687 196
MMF2454 31.5 MMF2513 61 MMF2572 90.5 MMF2631 140 MMF2688 197
MMF2455 32 MMF2514 61.5 MMF2573 91 MMF2632 141 MMF2689 198
MMF2456 32.5 MMF2515 62 MMF2574 91.5 MMF2633 142 MMF2690 199
MMF2457 33 MMF2516 62.5 MMF2575 92 MMF2634 143 MMF2691 200
MMF2458 33.5 MMF2517 63 MMF2576 92.5
MMF2459 34 MMF2518 63.5 MMF2577 93
TOLERANCES:
B-  Length up to 100mm  ±  .15mm
100mm  to 150mm  ±  .20mm
150mm  and over  ±  .25mm
C-  Length will be adjusted where B dimensions will not permit full thread depth
D-  Diameter Dimension, Mill Standard
*No undercut Nylon & Delrin®
