Spinning Clinch Bolt Captive Panel Screw
Without Spring - Tool Installation Only  SCB-U

Self Clinching Fasteners  •  Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes
• No spring    • Remain captive in sheets    • Tool installation only
American Standard Sizes:   • Series SCB-U
Metric Sizes:   • Series SCB-U
Series SCB-U
Series  SCB-U  /  American Standard Sizes
      • Type-  Non-Jacking
      • Min. Sheet Thickness-  0.040"
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Finish-  Zinc Clear Plated per ASTM B633
      • Mil-Spec-  N/A
Series SCB-U
American Standard Sizes (SAE)
Part
Number		 Thread "E" "H"
Nom.		 "L" "T"
Nom.		 Nom.
Axial
Float		 Driver
Size		 Hole
Size
in Sheet		 Min.
Distance
to Edge
  SCB-440-8-ZI-U 4-40 0.250" 0.080" 0.500" 0.130" 0.330" #1 Phillips 0.112" 0.130"
  SCB-632-8-ZI-U 6-32 0.291" 0.080" 0.500" 0.130" 0.330" #2 Phillips 0.138" 0.150"
Series  SCB-U  /  Metric Sizes
      • Type-  Non-Jacking
      • Min. Sheet Thickness-  1.02 mm
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Finish-  Zinc Clear Plated per ASTM B633
      • Mil-Spec-  N/A
Series SCB-U
Metric Sizes
Part

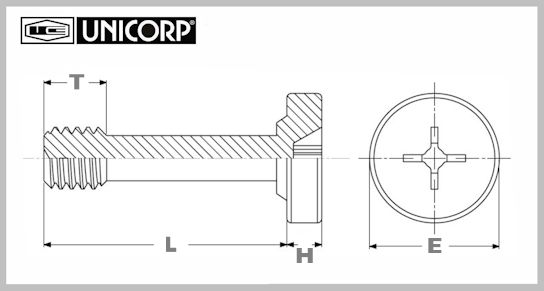

Number		 Thread "E" "H"
Nom.		 "L" "T"
Nom.		 Nom.
Axial
Float		 Driver
Size		 Hole
Size
in Sheet		 Min.
Distance
to Edge
  SCB-M3-12-ZI-U M3 x 0.5 6.60
mm		 2.03
mm		 12.00
mm		 3.30
mm		 7.67
mm		 #1 Phillips 3.00
mm		 3.30
mm
  SCB-M3-14-ZI-U M3 x 0.5 6.60
mm		 2.03
mm		 14.00
mm		 5.30
mm		 7.67
mm		 #1 Phillips 3.00
mm		 3.30
mm
  SCB-M4-12-ZI-U M4 x 0.7 8.28
mm		 2.03
mm		 12.00
mm		 3.30
mm		 7.67
mm		 #2 Phillips 4.00
mm		 5.00
mm
  SCB-M4-14-ZI-U M4 x 0.7 8.28
mm		 2.03
mm		 14.00
mm		 5.30
mm		 7.67
mm		 #2 Phillips 4.00
mm		 5.00
mm
