Miniature Pins  MPP-U

Self Clinching Fasteners  •  Miniature Series
Metric Sizes
• Self-clinching    • Installed quickly and easily by squeezing into hole
• Creates flush-head assembly in panels as thin as 0.50 mm
• Chamfered end for easy location of mating hole    • Installed on stainless steel sheets
Series  MPP-U
Series  MPP-U  /  Metric Sizes
      • Sheet Hardness-  HRB 92 / HB 195 or Less
      • Material-  Age Hardened A286 Stainless Steel
      • Finish-  Passivated per ASTM A380

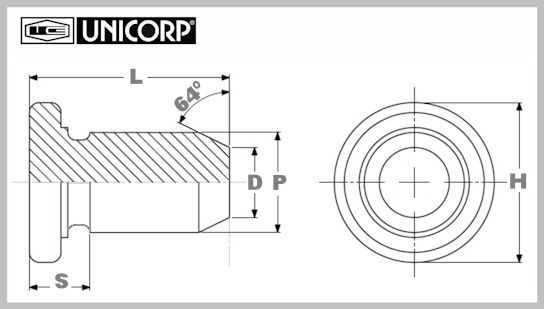

Series MPP-U
Metric Sizes
Part
Number		 "P"
Pin
Diameter		 Head
Shape		 "H"
Head
Diameter		 "L"
Body
Length		 "S" Max. Anvil
Length		 Min.
Sheet
Thickness		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Mil-Spec
  MPP-1MM-2-U 1.00
mm		 Round 1.60
mm		 2.00
mm		 0.70
mm		 5.18
mm		 0.50
mm		 1.05
mm		 2.05
mm		 N/A
  MPP-1MM-3-U 1.00
mm		 Round 1.60
mm		 3.00
mm		 0.70
mm		 6.18
mm		 0.50
mm		 1.05
mm		 2.05
mm		 N/A
  MPP-1MM-4-U 1.00
mm		 Round 1.60
mm		 4.00
mm		 0.70
mm		 7.18
mm		 0.50
mm		 1.05
mm		 2.05
mm		 N/A
  MPP-1MM-5-U 1.00
mm		 Round 1.60
mm		 5.00
mm		 0.70
mm		 8.18
mm		 0.50
mm		 1.05
mm		 2.05
mm		 N/A

  MPP-1.5MM-3-U 1.50
mm		 Round 2.24
mm		 3.00
mm		 0.70
mm		 6.18
mm		 0.50
mm		 1.55
mm		 2.60
mm		 N/A
  MPP-1.5MM-4-U 1.50
mm		 Round 2.24
mm		 4.00
mm		 0.70
mm		 7.18
mm		 0.50
mm		 1.55
mm		 2.60
mm		 N/A
  MPP-1.5MM-5-U 1.50
mm		 Round 2.24
mm		 5.00
mm		 0.70
mm		 8.18
mm		 0.50
mm		 1.55
mm		 2.60
mm		 N/A
  MPP-1.5MM-6-U 1.50
mm		 Round 2.24
mm		 6.00
mm		 0.70
mm		 9.18
mm		 0.50
mm		 1.55
mm		 2.60
mm		 N/A
  MPP-1.5MM-8-U 1.50
mm		 Round 2.24
mm		 8.00
mm		 0.70
mm		 11.18
mm		 0.50
mm		 1.55
mm		 2.60
mm		 N/A

  MPP-2MM-4-U 2.00
mm		 Round 3.02
mm		 4.00
mm		 0.70
mm		 7.18
mm		 0.50
mm		 2.05
mm		 4.40
mm		 N/A
  MPP-2MM-5-U 2.00
mm		 Round 3.02
mm		 5.00
mm		 0.70
mm		 8.18
mm		 0.50
mm		 2.05
mm		 4.40
mm		 N/A
  MPP-2MM-6-U 2.00
mm		 Round 3.02
mm		 6.00
mm		 0.70
mm		 9.18
mm		 0.50
mm		 2.05
mm		 4.40
mm		 N/A
  MPP-2MM-8-U 2.00
mm		 Round 3.02
mm		 8.00
mm		 0.70
mm		 11.18
mm		 0.50
mm		 2.05
mm		 4.40
mm		 N/A
  MPP-2MM-10-U 2.00
mm		 Round 3.02
mm		 10.00
mm		 0.70
mm		 13.18
mm		 0.50
mm		 2.05
mm		 4.40
mm		 N/A
