Slotted Head Shoulder Screws
5/8" Head Diameter
Available in 303, 316, 416 Stainless Steel, 4140 Alloy Steel,
Brass and Carbon Steel all with or without plating


Back To Shoulder Screws Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

  • 303 Stainless Steel • 316 Stainless Steel • 416 Stainless Steel • 4140 Alloy Steel
    • Brass • Carbon Steel
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
303 Stainless Steel

    Part Number

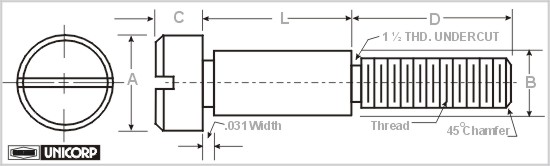

A B C D L Thread
   SCS625- 1 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625- 2 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625- 3 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625- 4 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625- 5 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625- 6 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625- 7 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625- 8 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625- 9 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625- 10 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625- 11 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625- 12 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625- 13 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625- 14 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625- 15 5/8 .499 1/4 1/2 1.500 3/8- 16
316 Stainless Steel

    Part Number

A B C D L Thread
   SCS625-316- 1 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625-316- 2 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625-316- 3 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625-316- 4 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625-316- 5 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625-316- 6 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625-316- 7 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625-316- 8 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625-316- 9 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625-316- 10 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625-316- 11 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625-316- 12 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625-316- 13 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625-316- 14 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625-316- 15 5/8 .499 1/4 1/2 1.500 3/8- 16
416 Stainless Steel

    Part Number

A B C D L Thread
   SCS625-416- 1 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625-416- 2 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625-416- 3 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625-416- 4 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625-416- 5 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625-416- 6 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625-416- 7 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625-416- 8 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625-416- 9 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625-416- 10 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625-416- 11 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625-416- 12 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625-416- 13 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625-416- 14 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625-416- 15 5/8 .499 1/4 1/2 1.500 3/8- 16
4140 Alloy Steel

    Part Number

A B C D L Thread
   SCS625-4140- 1 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625-4140- 2 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625-4140- 3 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625-4140- 4 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625-4140- 5 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625-4140- 6 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625-4140- 7 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625-4140- 8 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625-4140- 9 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625-4140- 10 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625-4140- 11 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625-4140- 12 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625-4140- 13 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625-4140- 14 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625-4140- 15 5/8 .499 1/4 1/2 1.500 3/8- 16
Brass

    Part Number

A B C D L Thread
   SCS625- 1- M01 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625- 2- M01 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625- 3- M01 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625- 4- M01 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625- 5- M01 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625- 6- M01 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625- 7- M01 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625- 8- M01 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625- 9- M01 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625- 10- M01 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625- 11- M01 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625- 12- M01 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625- 13- M01 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625- 14- M01 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625- 15- M01 5/8 .499 1/4 1/2 1.500 3/8- 16
Carbon Steel

    Part Number

A B C D L Thread
   SCS625- 1- M10 5/8 .499 1/4 1/2 .250 3/8- 16
   SCS625- 2- M10 5/8 .499 1/4 1/2 .313 3/8- 16
   SCS625- 3- M10 5/8 .499 1/4 1/2 .375 3/8- 16
   SCS625- 4- M10 5/8 .499 1/4 1/2 .437 3/8- 16
   SCS625- 5- M10 5/8 .499 1/4 1/2 .500 3/8- 16
   SCS625- 6- M10 5/8 .499 1/4 1/2 .562 3/8- 16
   SCS625- 7- M10 5/8 .499 1/4 1/2 .625 3/8- 16
   SCS625- 8- M10 5/8 .499 1/4 1/2 .687 3/8- 16
   SCS625- 9- M10 5/8 .499 1/4 1/2 .750 3/8- 16
   SCS625- 10- M10 5/8 .499 1/4 1/2 .875 3/8- 16
   SCS625- 11- M10 5/8 .499 1/4 1/2 1.000 3/8- 16
   SCS625- 12- M10 5/8 .499 1/4 1/2 1.125 3/8- 16
   SCS625- 13- M10 5/8 .499 1/4 1/2 1.250 3/8- 16
   SCS625- 14- M10 5/8 .499 1/4 1/2 1.375 3/8- 16
   SCS625- 15- M10 5/8 .499 1/4 1/2 1.500 3/8- 16
Applicable Tolerances

B

C

L

+.000  / - .001 ±.005 ±.005
Applicable Specifications

Stainless Steel

Passivate

    Threads

 QQ- S- 763, Class 303, Cond. A. Per
      Mil-F-14072-A (EL) E 300

 Class 2A per handbook   H.28,
Part 1
Slot Information
Thread Width Depth
4 - 40 .047 .062
6 - 32 .047 .062
8 - 32 .047 .062
10 - 24 .063 .078
10 - 32 .063 .078
1/4 - 20 .078 .093
5/16 - 18 .094 .109
3/8 - 16 .094 .109
Standard in Type 303 Stainless Steel. Other materials available on special order.
