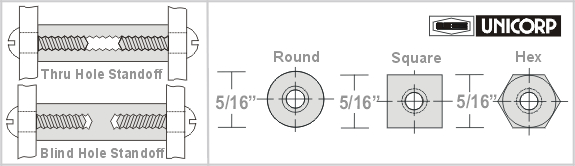

5/16" Standoffs (Threaded)
Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes

Conversion Chart
Metric Standoffs
American Standard Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
P781 1/16 P830 53/64 P879 1- 19/32 P928 2- 23/64 P977 4 INCH
P782 5/64 P831 27/32 P880 1- 39/64 P929 2- 3/8 P978 4- 1/8
P783 3/32 P832 55/64 P881 1- 5/8 P930 2- 25/64 P979 4- 1/4
P784 7/64 P833 7/8 P882 1- 41/64 P931 2- 13/32 P980 4-3/8
P785 1/8 P834 57/64 P883 1- 21/32 P932 2- 27/64 P981 4- 1/2
P786 9/64 P835 29/32 P884 1- 43/64 P933 2- 7/16 P982 4-5/8
P787 5/32 P836 59/64 P885 1- 11/16 P934 2- 29/64 P983 4-3/4
P788 11/64 P837 15/16 P886 1- 45/64 P935 2- 15/32 P984 4-7/8
P789 3/16 P838 61/64 P887 1- 23/32 P936 2- 31/64 P985 5 INCH
P790 13/64 P839 31/32 P888 1- 47/64 P937 2- 1/2 P986 5-1/8
P791 7/32 P840 63/64 P889 1- 3/4 P938 2- 33/64 P987 5-1/4
P792 15/64 P841 1 INCH P890 1- 49/64 P939 2- 17/32 P988 5-3/8
P793 1/4 P842 1- 1/64 P891 1- 25/32 P940 2- 35/64 P989 5-1/2
P794 17/64 P843 1- 1/32 P892 1- 51/64 P941 2- 9/16 P990 5-5/8
P795 9/32 P844 1- 3/64 P893 1- 13/16 P942 2- 37/64 P991 5-3/4
P796 19/64 P845 1- 1/16 P894 1- 53/64 P943 2- 19/32 P992 5-7/8
P797 5/16 P846 1- 5/64 P895 1- 27/32 P944 2- 39/64 P993 6 INCH
P798 21/64 P847 1- 3/32 P896 1- 55/64 P945 2- 5/8 P994 6-1/8
P799 11/32 P848 1- 7/64 P897 1- 7/8 P946 2- 41/64 P995 6-1/4
P800 23/64 P849 1- 1/8 P898 1- 57/64 P947 2- 21/32 P996 6-3/8
P801 3/8 P850 1- 9/64 P899 1- 29/32 P948 2- 43/64 P997 6-1/2
P802 25/64 P851 1- 5/32 P900 1- 59/64 P949 2- 11/16 P998 6-5/8
P803 13/32 P852 1- 11/64 P901 1- 15/16 P950 2- 45/64 P999 6-3/4
P804 27/64 P853 1- 3/16 P902 1- 61/64 P951 2- 23/32 P1000 6-7/8
P805 7/16 P854 1- 13/64 P903 1- 31/32 P952 2- 47/64 P1001 7 INCH
P806 29/64 P855 1- 7/32 P904 1- 63/64 P953 2- 3/4 P1002 7-1/8
P807 15/32 P856 1- 15/64 P905 2 INCH P954 2- 49/64 P1003 7-1/4
P808 31/64 P857 1- 1/4 P906 2- 1/64 P955 2- 25/32 P1004 7-3/8
P809 1/2 P858 1- 17/64 P907 2- 1/32 P956 2- 51/64 P1005 7-1/2
P810 33/64 P859 1- 9/32 P908 2- 3/64 P957 2- 13/16 P1006 7-5/8
P811 17/32 P860 1- 19/64 P909 2- 1/16 P958 2- 53/64 P1007 7-3/4
P812 35/64 P861 1- 5/16 P910 2- 5/64 P959 2- 27/32 P1008 7-7/8
P813 9/16 P862 1- 21/64 P911 2- 3/32 P960 2- 55/64 P1009 8 INCH
P814 37/64 P863 1- 11/32 P912 2- 7/64 P961 2- 7/8 P1010 8-1/8
P815 19/32 P864 1- 23/64 P913 2- 1/8 P962 2- 57/64 P1011 8-1/4
P816 39/64 P865 1- 3/8 P914 2- 9/64 P963 2- 29/32 P1012 8-3/8
P817 5/8 P866 1- 25/64 P915 2- 5/32 P964 2- 59/64 P1013 8-1/2
P818 41/64 P867 1- 13/32 P916 2- 11/64 P965 2- 15/16 P1014 8-5/8
P819 21/32 P868 1- 27/64 P917 2- 3/16 P966 2- 61/64 P1015 8-3/4
P820 43/64 P869 1- 7/16 P918 2- 13/64 P967 2- 31/32 P1016 8-7/8
P821 11/16 P870 1- 29/64 P919 2- 7/32 P968 2- 63/64 P1017 9 INCH
P822 45/64 P871 1- 15/32 P920 2- 15/64 P969 3 INCH P1018 9-1/8
P823 23/32 P872 1- 31/64 P921 2- 1/4 P970 3-1/8 P1019 9-1/4
P824 47/64 P873 1- 1/2 P922 2- 17/64 P971 3-1/4 P1020 9-3/8
P825 3/4 P874 1- 33/64 P923 2- 9/32 P972 3-3/8 P1021 9-1/2
P826 49/64 P875 1- 17/32 P924 2- 19/64 P973 3-1/2 P1022 9-5/8
P827 25/32 P876 1- 35/64 P925 2- 5/16 P974 3-5/8 P1023 9-3/4
P828 51/64 P877 1- 9/16 P926 2- 21/64 P975 3-3/4 P1024 9-7/8
P829 13/16 P878 1- 37/64 P927 2- 11/32 P976 3-7/8 P1025 10 INCH
