Phillips Head Shoulder Screws
3/4" Head Diameter
Available in 303, 316, 416 Stainless Steel, 4140 Alloy Steel,
Brass and Carbon Steel all with or without plating


Back To Shoulder Screws Page

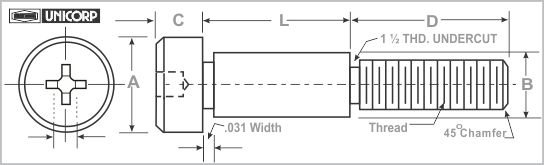

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

  • 303 Stainless Steel • 316 Stainless Steel • 416 Stainless Steel • 4140 Alloy Steel
    • Brass • Carbon Steel
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
303 Stainless Steel

    Part Number

A B C D L Thread Drive Size
   SCPH750- 3 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 4 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 5 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 6 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4
316 Stainless Steel

    Part Number

A B C D L Thread Drive Size
   SCPH750- 316- 3 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 316- 4 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 316- 5 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 316- 6 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4
416 Stainless Steel

    Part Number

A B C D L Thread Drive Size
   SCPH750- 416- 3 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 416- 4 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 416- 5 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 416- 6 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4
4140 Alloy Steel

    Part Number

A B C D L Thread Drive Size
   SCPH750- 4140- 3 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 4140- 4 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 4140- 5 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 4140- 6 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4
Brass

    Part Number

A B C D L Thread Drive Size
   SCPH750- 3- M01 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 4- M01 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 5- M01 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 6- M01 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4
Carbon Steel

    Part Number

A B C D L Thread Drive Size
   SCPH750- 3- M10 3/4 1/2 5/16 5/8 .500 3/8- 16 #4
   SCPH750- 4- M10 3/4 1/2 5/16 5/8 .625 3/8- 16 #4
   SCPH750- 5- M10 3/4 1/2 5/16 5/8 .750 3/8- 16 #4
   SCPH750- 6- M10 3/4 1/2 5/16 5/8 1.000 3/8- 16 #4

Applicable Tolerances

B C L
+.000  / - .001 ± .005 ± .005
Applicable Specifications
Stainless Steel Passivate Threads
QQ- S- 763, Class 303, Cond. A. Per Mil-F-14072-A
(EL) E 300
Class 2A per handbook
H.28, Part 1

Standard in Type 303 Stainless Steel.
Other materials available: 316 Stainless Steel, 416 Stainless Steel, 4140 Alloy Steel, Brass, Carbon Steel
